Oracle Trigger Din Connector Harness
Oracle Trigger Din Connector Harness
SKU: ORL3012
Couldn't load pickup availability
Shipping, lead times & import charges
U.S.-stock and overseas-sourced items have different lead times. If this item must ship from Japan or another country, supplier processing, international transit and customs clearance can extend delivery. A shipping service transit estimate does not include supplier lead time. Contact RACECLUB for the current dispatch estimate before ordering time-sensitive or special-order parts.
For shipments crossing a border, customs duties, import taxes and carrier brokerage or handling fees may apply. Charges expressly collected at checkout are shown there; otherwise additional import charges may be payable by the recipient. Foreign manufacture alone does not mean your order will ship internationally. Confirm the shipping origin and any applicable import charges with us before ordering.

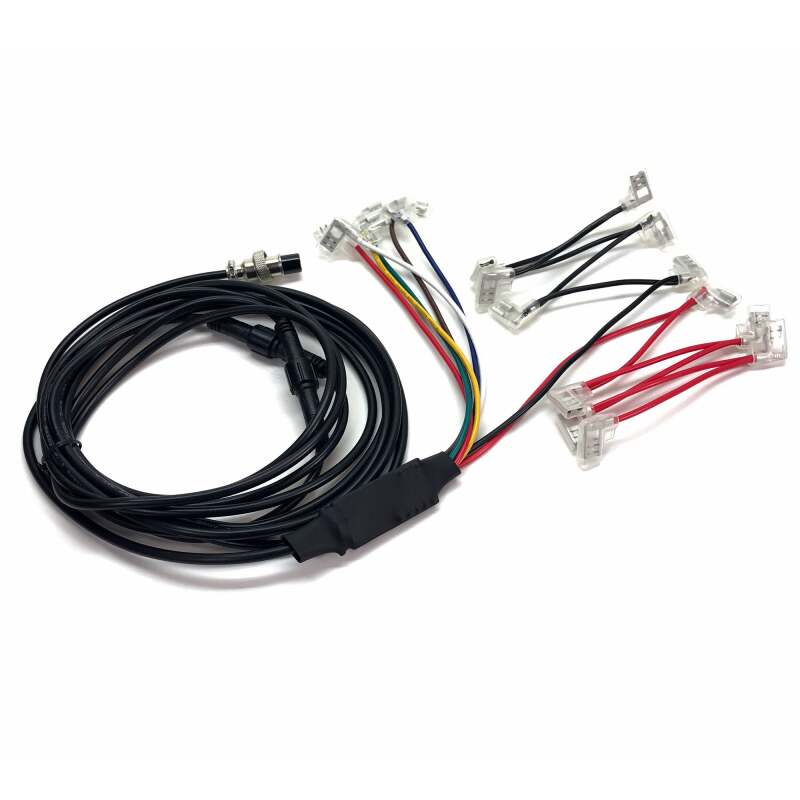

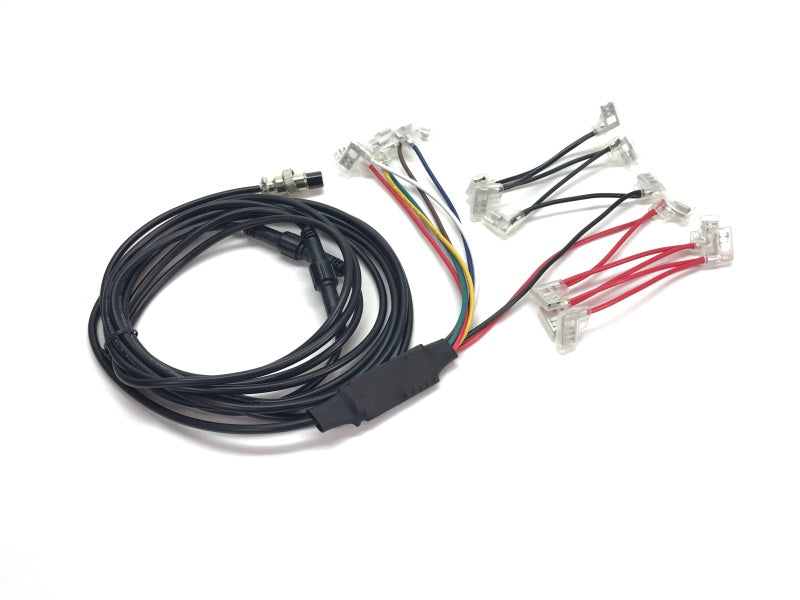

Confirm fitment, availability and deliveryUsing the built-in DIN connector on the TRIGGER 6 SHOOTER or 4 PLUS, connect our TRIGGER DIN Connector Harness for manual control of conventional rocker switches. The harness is 12 ft long. Important: When installing the DIN cable to the controller, be sure the power is off before inserting the connector. The yellow wire on the controller is power on/off, be sure it has no power going into it before connection. The DIN harness allows you to use conventional rocker switches with TRIGGER…for example, let's say you already have accessories wired up in the traditional way, with mechanical relays and a nest of wires. Using the DIN harness you can remove the mechanical relays and wiring currently powering your accessories, connect the conventional rockers to the TRIGGER via the DIN harness, and then connect the accessories to the TRIGGER. Now the conventional rockers are basically sending a signal through the DIN harness to the TRIGGER which then controls power distribution to the accessories. Make sense? The end result is a cleaner installation (we've gotten rid of the relay/wiring mess) and we've added yet another way to control your accessories…now you've got four different ways to control your accessories through the TRIGGER: 1) buttons on the control box, 2) RF remote, 3) App on your phone, and 4) conventional rockers with the DIN harness.
Installation Instructions
