Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access

Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access

$46,826.49 USD
$46,826.49 USD
Sale Sold out
Shipping, lead times & import charges

U.S.-stock and overseas-sourced items have different lead times. If this item must ship from Japan or another country, supplier processing, international transit and customs clearance can extend delivery. A shipping service transit estimate does not include supplier lead time. Contact RACECLUB for the current dispatch estimate before ordering time-sensitive or special-order parts.

For shipments crossing a border, customs duties, import taxes and carrier brokerage or handling fees may apply. Charges expressly collected at checkout are shown there; otherwise additional import charges may be payable by the recipient. Foreign manufacture alone does not mean your order will ship internationally. Confirm the shipping origin and any applicable import charges with us before ordering.

Confirm fitment, availability and delivery

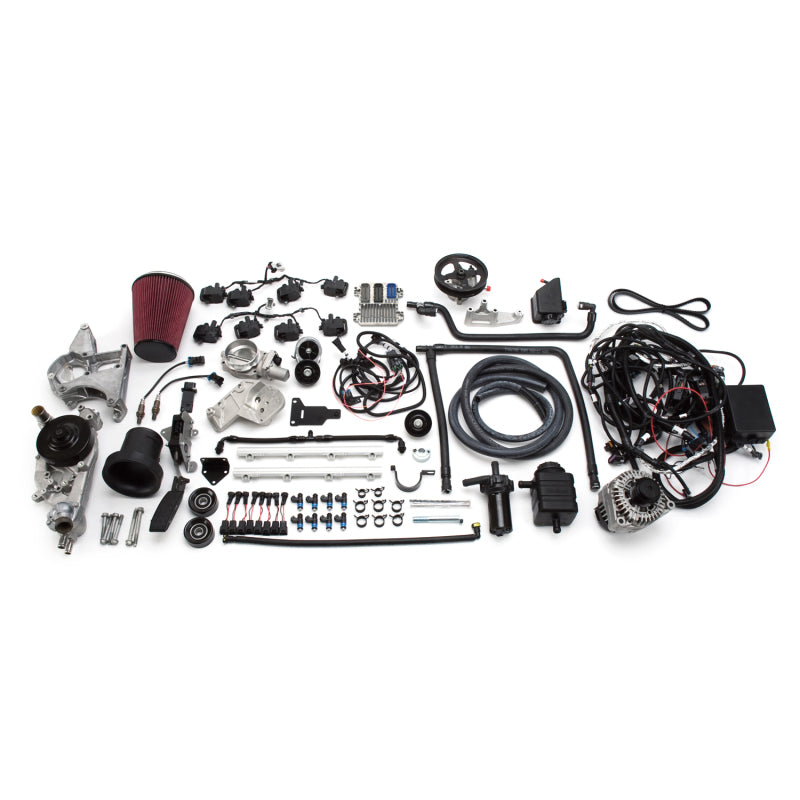

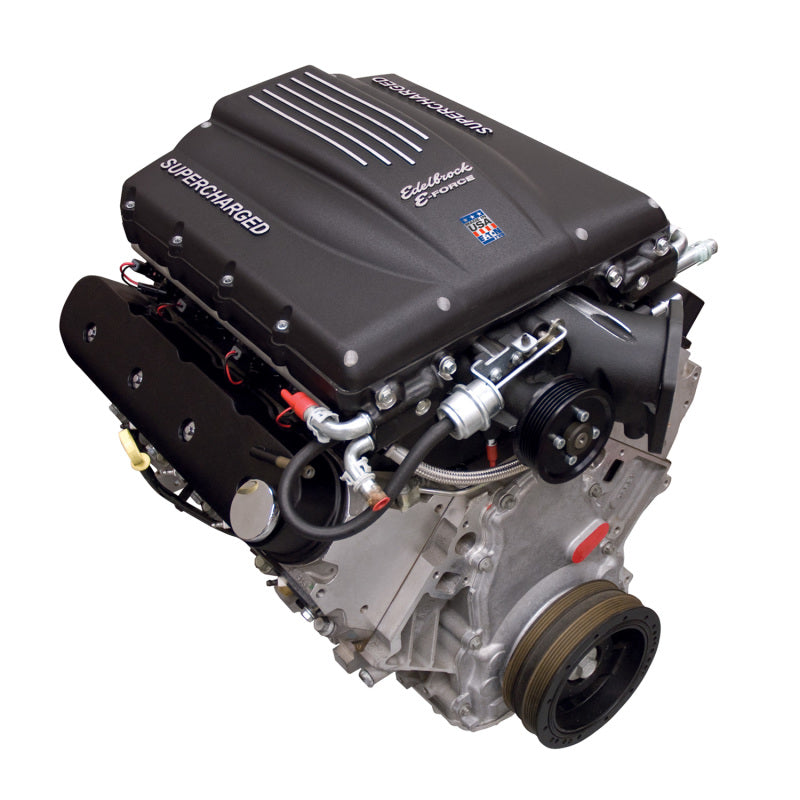

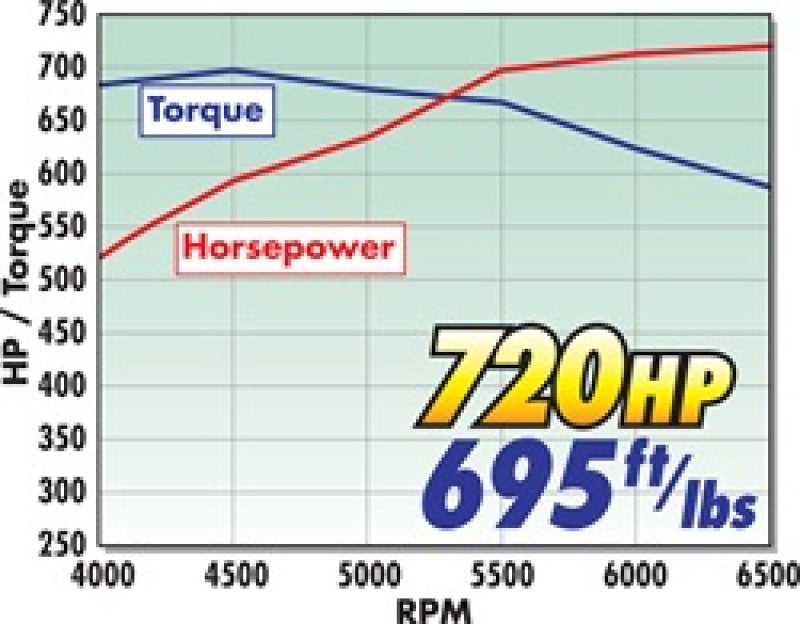

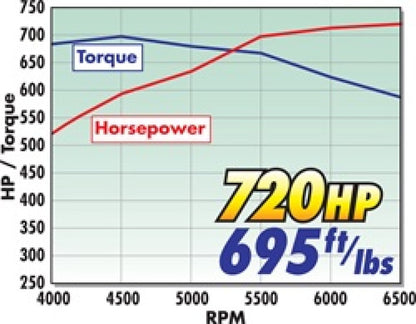

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage
