S30 Header Fitment: Making Room for a Low-Profile Oval Exhaust

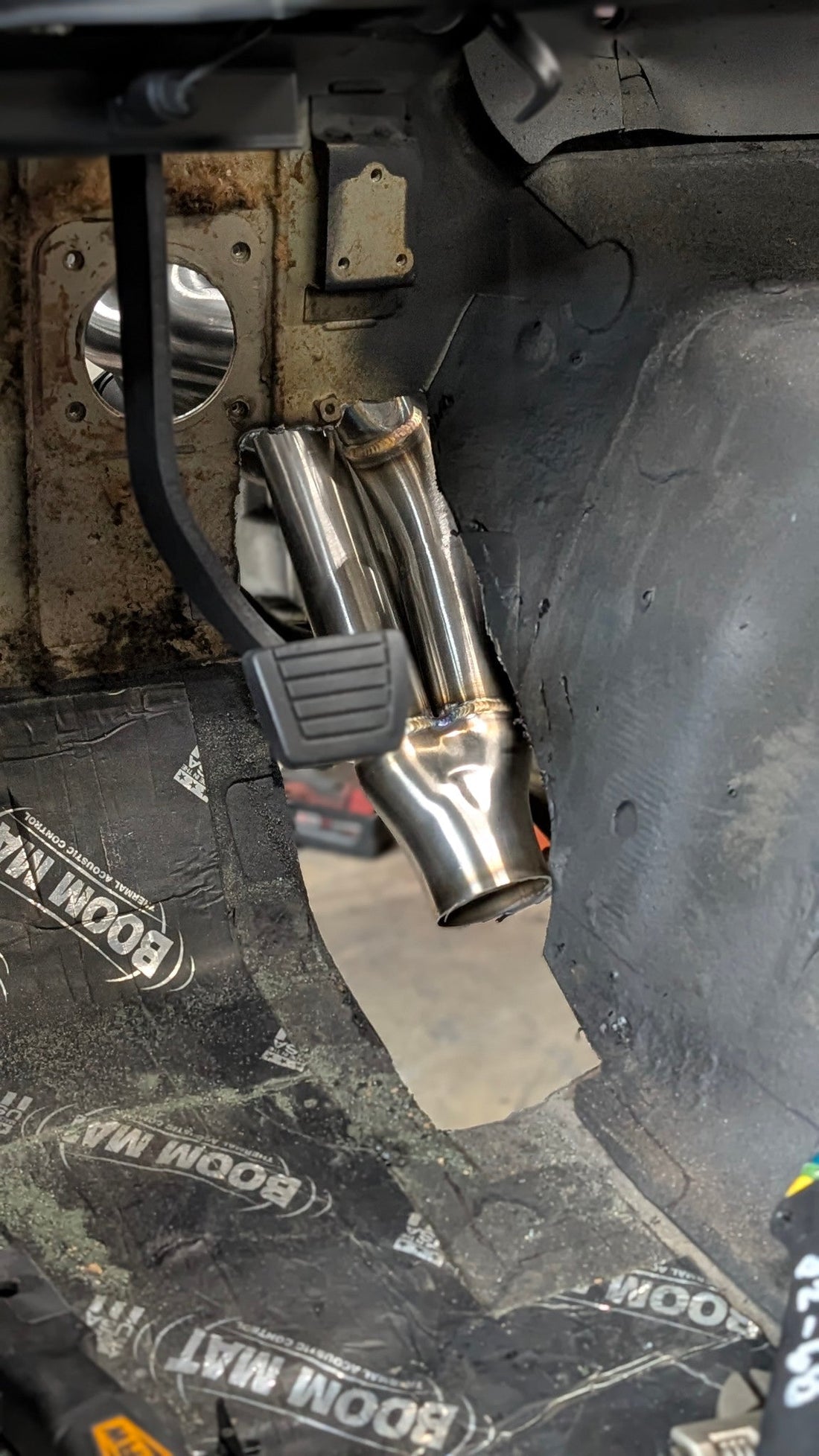

Feature photo: the header collector and unfinished firewall/footwell clearance work in the S30. Photo: Race Club.
The S30’s exhaust route is taking shape. We’ve modified ISR S13 VQ-swap headers for this chassis, with firewall and footwell clearance work forming a major part of the fitment. The next part of the plan is a custom exhaust built here at Race Club using CXRacing’s 3-inch oval materials.
This is a closer look at the header and exhaust work introduced in our pre-paint fabrication update. The new photos show the space we’re working with, including the collector beside the footwell. They document fabrication in progress.
S13 starting point, custom S30 fitment
A swap header’s original application is only the starting point when it moves into another chassis. ISR’s current S13/S14 VQ-swap header family is designed around that platform and the manufacturer’s matching mounts. Those fitment conditions don’t certify an S30 installation.
Here, the work is in adapting the headers to the actual car. The route has to coexist with the body, pedal area and surrounding hardware. The footwell view makes that relationship especially clear: the collector occupies space beside the driver’s compartment, so the surrounding fabrication is part of the exhaust job.
The opening shown in the feature photo is unfinished. Final closure, heat protection and clearance verification still matter before this area can be treated as ready for use. A photograph of a static mock-up can show the route; it cannot establish clearance through drivetrain movement or prove the finished heat barrier.
Why we’re planning oval tubing
The attraction of CXRacing’s low-profile oval material is packaging. A shallower section gives us another option for keeping the exhaust close to the car while working around the available underbody space. The exhaust itself is still planned, and the finished routing, transitions and mounting arrangement remain part of that work.
CXRacing calls its 3-inch oval straight tubing a 3-inch O.D.-equivalent product. That label shouldn’t be read as a verified measurement of either oval axis, or a promise that the complete system flows like any particular round-pipe system. Actual dimensions, transitions, bends and the rest of the layout all need to be considered together.
Exhaust tone starts with pressure pulses
When an exhaust valve opens, the pressure release sends a wave into the header. Gas flow and pressure-wave travel happen together, but they’re different parts of the problem. Burns Stainless explains how primary length and changes in area at collectors affect wave reflections and their timing. That is why header layout matters beyond simply giving the gas a path out.
The audible rhythm changes with engine speed. The paths through the headers and collectors, the merge layout, resonators, mufflers and outlet all help shape what reaches the tailpipe. Oval tubing gives us a packaging option; the complete system will establish its sound.
Borla’s explanation of exhaust drone adds the cabin to that picture. Certain frequencies can be reinforced by the exhaust and the interior, producing the persistent low-frequency hum people call drone. Assessing the finished system means listening across its operating range, including steady-speed conditions, as well as acceleration. We haven’t reached that stage on this exhaust yet.
Summers Brothers Racing is machining the adapter
Another part of the build now has a confirmed shop behind it: Summers Brothers Racing is machining the oil-cooler adapter for us. It’s a project-specific piece that still has to join the final oil-plumbing and clearance package.
There’s real history in that name. The Henry Ford records Bob and Bill Summers’ Goldenrod averaging 409.277 mph at Bonneville on November 12, 1965, setting a wheel-driven land-speed record. Having Summers Brothers Racing involved in the machining adds a welcome connection to that fabrication heritage.
For now, the progress is clear: modified headers and ongoing clearance work in the S30, an oval exhaust planned for fabrication at Race Club, and the oil-cooler adapter in machining. The finished exhaust note comes after the rest of the hardware is built and checked.
Original photography and current build details: Race Club. Linked manufacturer products carry competition-use notices; this update makes no road-use or emissions-compliance claim for the build.
