280Z Pre-Paint Fabrication: Oil Cooler Adapter, Header Clearance and Steering

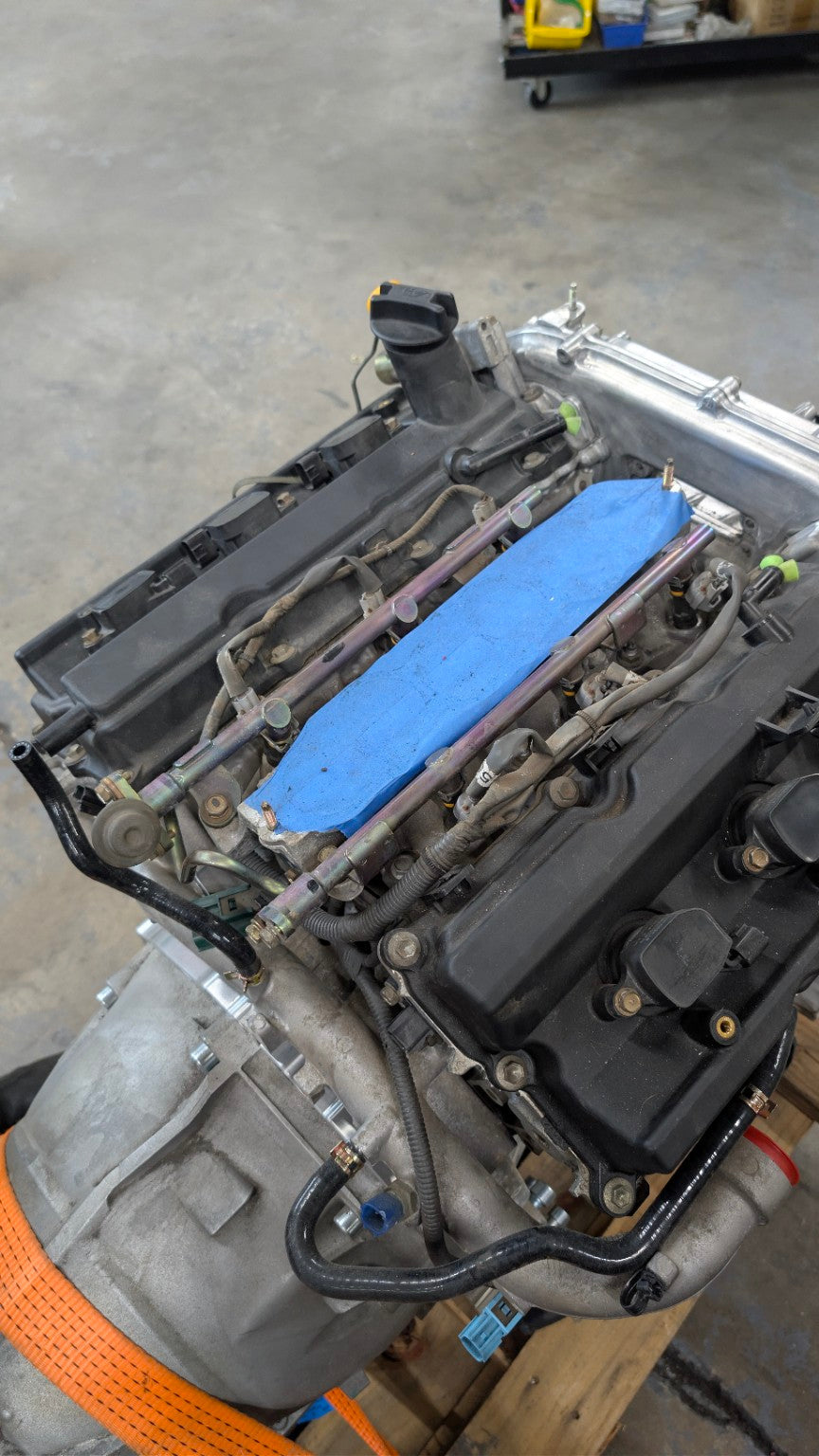

Hero: The VQ35DE and ZF 8HP50 assembly staged in the Race Club shop before final Datsun 280Z header-clearance work. Photo: Race Club.

The 280Z project is at the stage where a short list of small-looking jobs controls the next major milestone. The Nissan VQ35DE and ZF 8HP50 automatic are positioned in the chassis, the transmission tunnel and mounting work have advanced, and the cooling package has been mocked in. Before the car moves into paint preparation, the remaining fabrication needs to be solved as a connected package.

The current list centers on the oil-cooler adapter, header clearance and steering shaft. None of those items is glamorous by itself. Together, they determine whether the car can be assembled cleanly after paint without cutting, grinding or discovering that two systems need the same space.

A one-off oil-cooler adapter keeps the plumbing intentional

The VQ35DE needs an oil-cooling layout that fits the S30 engine bay and the final service plan. Race Club is having a sandwich-plate adapter machined for the project rather than forcing a generic part into the available space. The working estimate for the one-off machining is about $250, subject to the final design and machine work.

The role of the adapter is straightforward: create the intended oil feed and return arrangement at the filter location while preserving clearance for the surrounding engine, steering and exhaust package. The important part is not the price of the billet piece. It is verifying port orientation, sealing surfaces, filter access and hose routing before the engine bay is considered finished.

This custom adapter is not currently represented as a live RaceClub.us catalog product. It is project-specific fabrication, and no availability or repeat-production claim is being made.

Header clearance follows the transmission decision

The ZF 8HP50 conversion changes the space around the back of the engine and transmission tunnel. The headers need modification so they clear the adapter and the rest of the driveline package without becoming impossible to install or service.

That means checking more than a static gap. The shop needs room for engine movement, fastener access, heat management, steering-shaft travel and the final exhaust connection. A tube that clears while the car is on stands can still be a problem once mounts settle, heat expands the system or the drivetrain moves under load.

The practical sequence is to lock the engine and transmission position, establish the steering path, confirm the adapter and starter access, then modify the header tubes. Final exhaust work should follow that geometry rather than forcing an earlier tube layout to survive.

The steering shaft is a fabrication item, not an afterthought

The steering shaft must pass through the same crowded area without contacting the headers, engine or chassis through its full range. Race Club still needs to fabricate the final solution before the car goes to paint. A temporary OEM piece may help establish geometry, but it is not being described as the finished answer.

The finished shaft needs correct joint alignment, support where required, positive fastener retention and clearance that remains usable after heat shielding and final assembly. Any component used in the final system will be identified only after the actual configuration is confirmed.

Why the radiator comes back out

The radiator has been removed as the car is prepared for the next fabrication and finishing steps. That creates access and prevents a completed cooling component from being damaged while the steering and exhaust details are resolved.

When it returns, the team will confirm hose paths, fan clearance, bleed strategy and service access with the bodywork and front structure in their final positions. Mock-up is valuable precisely because it allows components to be removed and revised before paint turns every correction into rework.

Current project-status snapshot

• Nissan VQ35DE positioned in the 280Z chassis.
• ZF 8HP50 conversion and transmission-mounting work advanced.
• Transmission tunnel and surrounding fabrication developed for the new driveline.
• One-off oil-cooler sandwich-plate adapter moving into machining.
• Headers awaiting modification around the confirmed driveline package.
• Final steering-shaft solution still to be fabricated.
• Radiator removed for access ahead of paint preparation.

The next milestone is not simply “paint.” It is a dry-built package that can be disassembled, finished and returned to the same verified geometry. Solving the oil, exhaust and steering paths now is what protects the schedule later.

All photographs show work performed in the Race Club shop. Component names describe the documented project configuration; no sponsorship, endorsement, availability or performance claim is implied.
