280Z Cooling Archive: Reading the Hardline Mock-Up

Shop archive | October 13, 2026

On Race Club’s VQ35DE-swapped 280Z, the coolant tube has to connect the engine and radiator while clearing the front accessories, steering hardware and surrounding parts. Holding the formed tube in the bay lets us check the route, nearby clearances and access before final assembly.

This detail file revisits the mock-up in the October 4 build report. The photographs show that earlier stage, before the stripped shell’s latest move for paint preparation. Final cooling-system assembly and testing are not documented here.

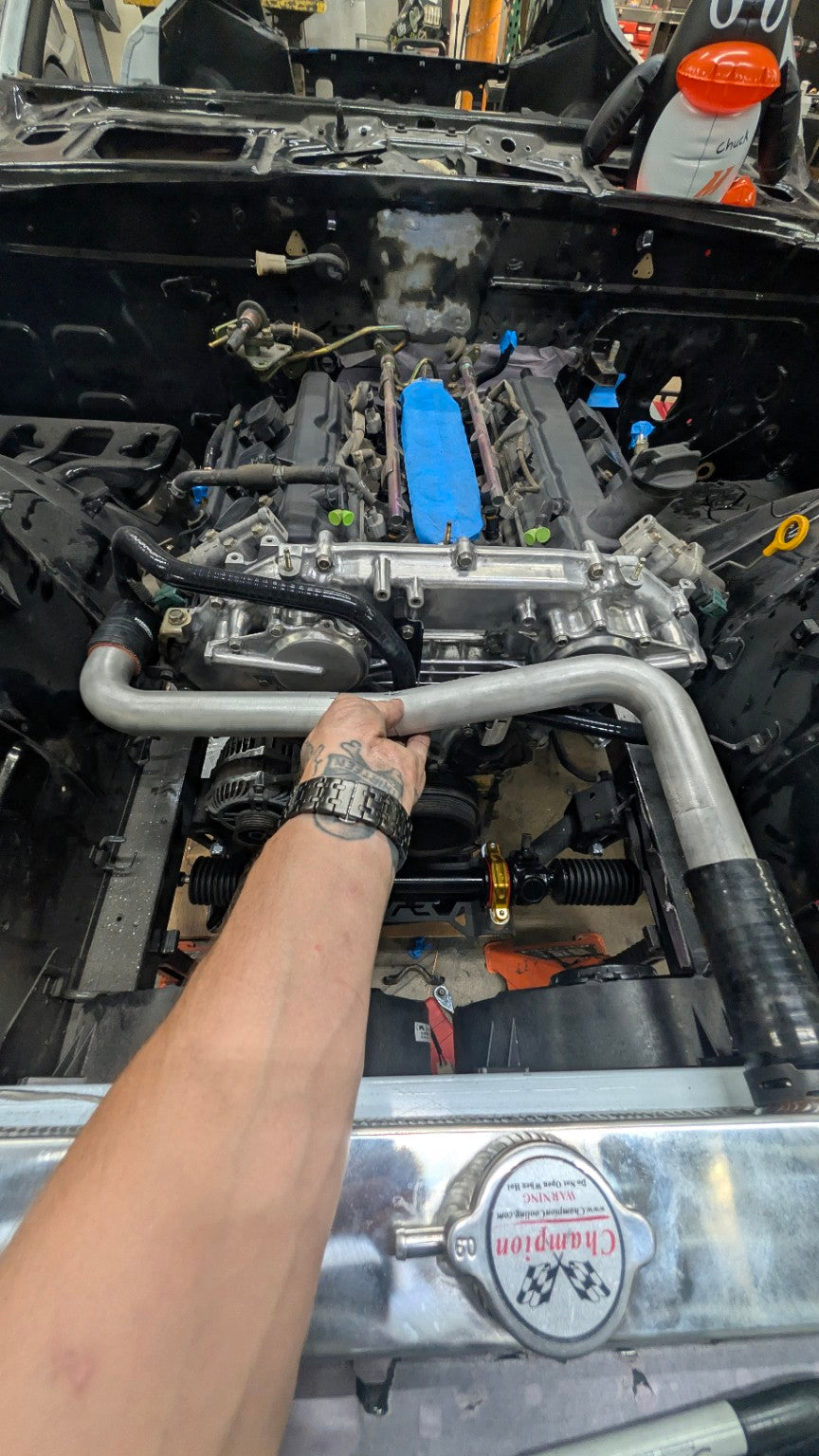

Lead photograph: a formed aluminum coolant tube held above the VQ35DE during the earlier fit check. Archive photo: Race Club Fabrication, first published October 4, 2026; capture date unconfirmed.

Start with the parts that establish the route

In the close view, the tube crosses the front of the engine before turning toward the radiator. The engine’s upper opening is covered with blue tape. The front accessories and steering rack sit below the tube, while nearby fittings and hose runs occupy space around it. These are the boundaries the cooling route has to work within.

The original report described the radiator and fan package as being in mock-up and said the coolant-hose paths had been mapped. It also noted that unused hose runs were being removed. Establishing that layout early gives the surrounding installation a clear reference: the engine’s position, the radiator’s position and the space available between them.

Use the fit check to make a working list

A useful mock-up review follows the tube from one connection to the other. Where will the joints sit? Which sections need support? Can the neighboring parts move or be serviced without making contact? Where will the remaining components change the available space?

Record those questions while the front of the car is open. Photograph the tight areas from more than one angle and note which measurements still depend on final assembly. A clear record lets the next stage pick up the same layout rather than reconstructing it from memory. Those are practical review steps; the visible hand-held tube marks a point in that process.

Check access as well as clearance

The October 4 report identified inspection, bleeding and service access as goals for the cooling layout. A route can clear the engine yet still make a routine job awkward. The next useful check is the assembly sequence: which component goes in first, where a hand or tool needs room, and what must come out to reach a connection later.

Looking at the wide photograph alongside the close view helps with that review. The close view shows the bend and its immediate neighbors. The wider view brings the radiator, front structure and the whole engine installation back into the decision. Both views belong in the build record because each answers a different question.

Carry the mock-up decisions into assembly

As the car moves through paint preparation, the archive retains the route that was being checked before disassembly. During reassembly, the final joints, supports and surrounding parts will determine whether that proposed path works as intended. The completed system will then need the appropriate inspection and testing.

That is the value of documenting a small fabrication detail. The finished bend will be easy to see; the access and packaging decisions behind it are easier to preserve while the car is still open.

Source and photography: Race Club Fabrication’s October 4, 2026 build archive.
