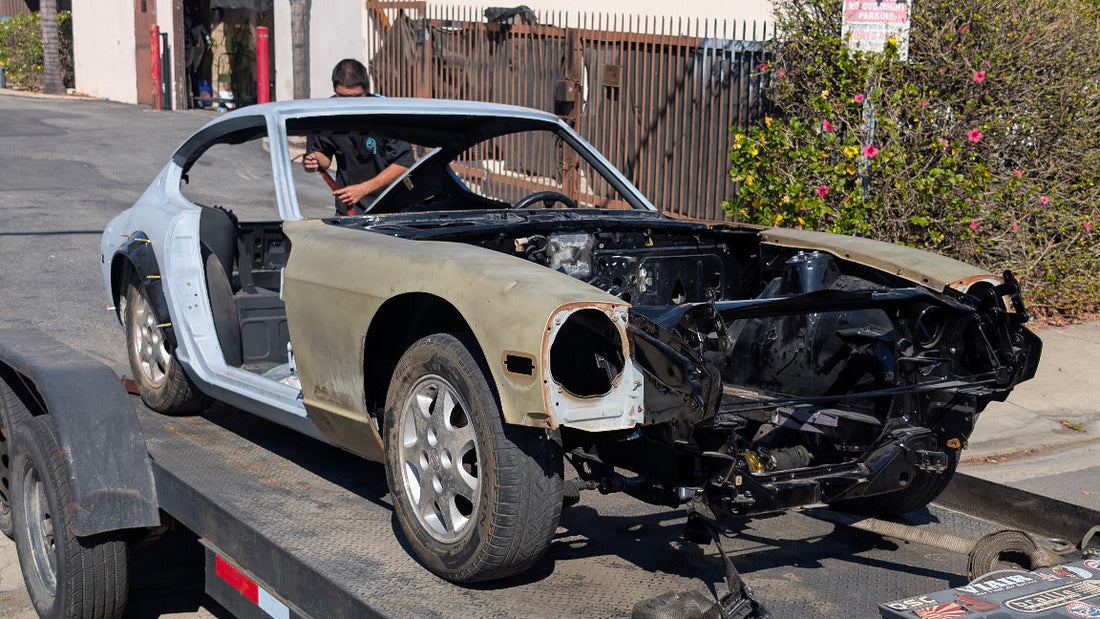

Race Club Datsun 280Z shell secured on a flatbed with its drivetrain and front bodywork removed for paint preparation

280Z Paint Prep: The Stripped Shell Leaves Race Club

October 13, 2026

WHAT’S IN THE SHOP · DATSUN 280Z · OCTOBER 13, 2026

The Race Club 280Z is no longer sitting in mock-up form with the powertrain and fabrication package assembled around it. The latest shop milestone is a deliberate strip-down: the chassis work is finished far enough for the shell to be cleared, loaded and moved into paint preparation.

That distinction matters. The car is not painted and this is not final assembly. The new photographs show the current transport-stage shell—drivetrain out, front bodywork removed, glass and interior out, and temporary rolling hardware doing exactly one job: making the chassis movable without exposing finished parts to body-shop work.

Feature photo: the stripped 280Z secured on the flatbed outside Race Club. Photo: Race Club.

Fabrication finished before the strip-down

Paint preparation only makes sense after the major packaging decisions have been proven in metal. On this build, the headers were fitted and the transmission tunnel and floor pan were modified to create the required space. That work included templating, cutting, shaping, grinding and welding, with paint and coatings removed from the weld areas and the tar-mat sound deadening taken out of the cabin.

The components were then removed so the repaired and modified shell can be prepared as a complete surface. It is the less glamorous half of custom fabrication: a part can fit correctly, but the surrounding metal still has to be finished, cleaned and made ready for coating. The earlier tunnel, exhaust-routing and Nissan 370Z pedal-fitment update shows how those clearance checks led to the metalwork now being finalized.

Rear three-quarter view of the stripped Race Club Datsun 280Z shell on a trailer with the interior and glazing removed — The empty cabin and open glass apertures show how completely the shell has been cleared for the next phase. Photo: Race Club.

A transport setup is not the finished specification

The front view makes the temporary condition easy to read. The engine bay is empty, the nose is open and the shell is sitting on S13 transport wheels. The brakes were removed for this rolling arrangement. An older steering rack was also installed for the body-and-paint stage so the new rack does not have to absorb sanding dust, overspray, repeated handling or transport damage.

Those parts should not be read as the finished steering, brake or wheel specification. They are sacrificial and practical. A body shell still needs to steer, roll and secure safely on a trailer even when the hardware intended for final assembly is stored away. Labeling temporary pieces and keeping the finished components separated now reduces the chance that a placeholder becomes an accidental final installation later.

Panel position has to survive the handoff

The rear-quarter photographs show the black overfender panel held against the body with temporary fasteners. This is useful evidence of the panel relationship before surface work begins: the opening, flare position and surrounding quarter-panel shape can be seen together while the shell is still in raw preparation.

No manufacturer or material claim is being made for that panel here; the photos document fit and position, not a product announcement. The practical takeaway is broader. Any removable flare, duct, bracket or trim piece that determines a finished edge needs a repeatable location. Reference holes, labeled hardware and photographs preserve that location after the panel comes off and the original surface disappears beneath primer, filler or paint.

Close view of the Race Club Datsun 280Z rear quarter and temporarily fastened overfender panel during paint preparation — Temporary fasteners hold the rear overfender in its recorded position before the shell moves deeper into body preparation. Photo: Race Club.

Engine work continues off the chassis

While the shell is cleared, the Nissan VQ35DE is being handled as a separate workstream. The engine has been degreased and cleaned, the intake manifold and fuel rails have been removed, and polishing has started. That is progress, but it is not a claim that the engine finish is complete. Keeping the engine work separate also gives the chassis team an unobstructed shell and keeps polishing debris and cleaning residue away from fresh bodywork.

The electric steering column is installed, while throttle-pedal mounting remains at the planning and template stage. Those two items are at different points and should stay that way in the record: one is installed; the other is still being designed around the real footwell and linkage requirements.

Current status

Complete: header fit checks, transmission-tunnel and floor modifications, welding and initial chassis preparation.
Current: stripped-shell transport and paint preparation; VQ35DE cleaning and early polishing.
Temporary: older steering rack, S13 rolling wheels and the body-stage configuration shown in the photos.
Still ahead: throttle-pedal mount design, completed engine finish, paint, protected reassembly and final system checks.

The important change this week is not a new catalog part. It is the handoff between fabrication and finish work. The shell can now move forward because the packaging decisions have already been translated into cut, shaped and welded metal—and because the expensive final hardware has been taken back out before the messy stage begins.

For the full project foundation, read the Race Club 280Z build story. We will document the next verified milestone when the body and paint work creates something materially new to show.

Build documentation and all photographs: Race Club. No paid or supplied-product relationship is represented in this update.
