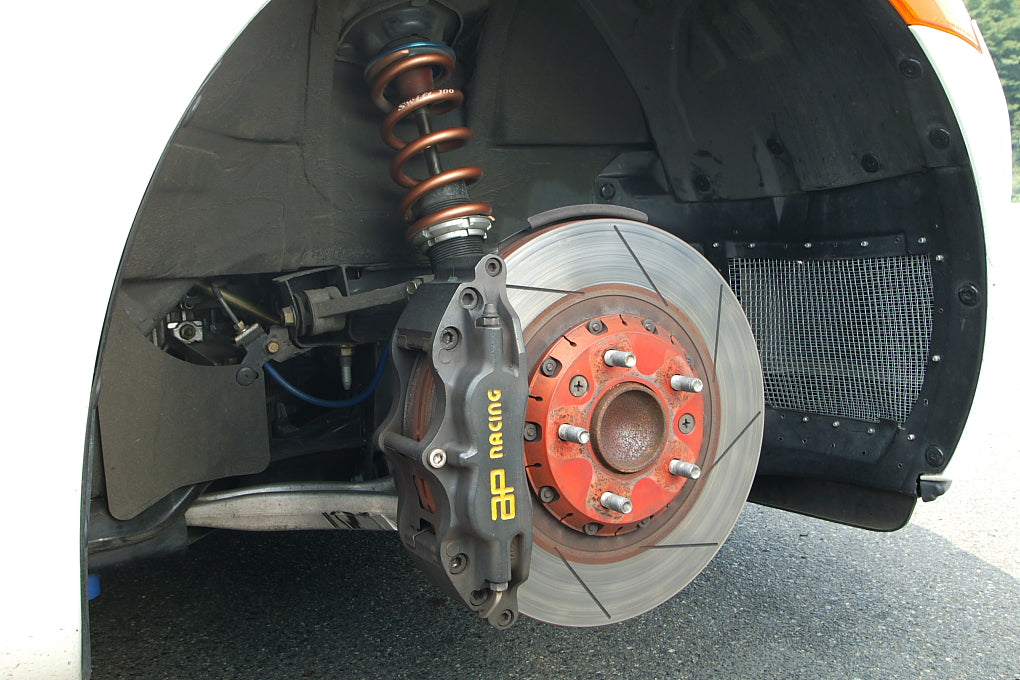

AP Racing disc brake; representative competition-brake photograph used for race-car brake-cooling discussion. Photo by Tennen-Gas / Wikimedia Commons, CC BY-SA 3.0.

Race-Car Brake Ducting: How to Cool the Rotor Without Creating a New Problem

Brake ducts are easy to describe as “more cooling,” but a race car does not need air pointed generally toward the wheel. It needs controlled airflow delivered to the part of the brake package that can use it.

Bad ducting can consume space, add drag, rub tires at steering lock and still leave the rotor faces running unevenly. Good ducting starts with where the air is collected, how it travels through the car and where it enters the disc.

Featured photograph: AP Racing disc brake. Representative competition-brake image. Photo by Tennen-Gas / Wikimedia Commons, licensed CC BY-SA 3.0.

Start with clean, high-pressure air

AP Racing's current disc-cooling guidance recommends collecting cooling air from a clean high-pressure area. That matters because a duct cannot recover pressure that was never available at the inlet.

An inlet buried behind turbulent bodywork can look substantial while moving very little air. Before enlarging the hose, look at the pickup location and whether the opening sees useful airflow at speed. On a track car with removable ducts, comparing rotor temperatures with and without a specific inlet can be more informative than judging the setup by appearance.

Every bend and restriction costs flow

AP Racing also warns against sharp bends and abrupt changes in section that can choke airflow. In real packaging, the shortest duct is not always possible, but the path should be treated like an airflow system rather than flexible hose that can be stuffed anywhere it fits.

Check steering lock and suspension travel with the duct installed. A hose that collapses against the tire, control arm or chassis at one part of the steering range can become an intermittent restriction. It can also become a mechanical failure if the tire catches it.

McLaren MP4/2B front suspension and brake cooling duct; archive representative brake-duct image. Photo by Bill Abbott / Wikimedia Commons, CC BY-SA 2.0.
A purpose-built brake duct manages the air near the upright rather than simply dumping air into the wheel well. Archive McLaren MP4/2B example; not a modern universal template. Photo by Bill Abbott / Wikimedia Commons, CC BY-SA 2.0.

Feed the disc where its internal vanes can work

For ventilated iron racing discs, AP Racing prefers cooling air delivered through the upright toward the disc throat so the internal vanes can move the air through the rotor. Simply blowing at the outside face does not use the ventilated structure the same way.

The bell, backing plate and duct outlet all influence how much of the incoming air actually enters the rotor. A large inlet does little if the air spills around the disc instead of being guided into it.

Both rotor faces need to live in the same world

AP Racing specifically warns that unequal cooling of the two disc faces can create temperature differences that contribute to distortion and a longer pedal. That is why the outlet around the rotor and the mounting-bell geometry matter.

When one face is shielded and the other is exposed to a strong stream of air, the rotor can be thermally unbalanced even if its average temperature looks acceptable. Inspect pad wear and disc condition on both sides rather than treating the outside face as the whole brake.

Ventilated Brembo disc brake on a Super GT Lamborghini Murcielago at Motegi in 2005; representative race-brake image. Photo by Comyu / Wikimedia Commons, CC BY-SA 3.0.
Ventilated racing rotors use internal airflow as part of their thermal design. This Brembo assembly was photographed on a Super GT Lamborghini at Motegi in 2005. Photo by Comyu / Wikimedia Commons, CC BY-SA 3.0.

More cooling is not automatically better

Race brakes are designed to work in a temperature window, and the correct window depends on the rotor, pad and application. Excessive cooling can keep a package below the condition it was designed around, while insufficient cooling can accelerate pad wear, fluid temperature and disc damage.

Use the rotor and pad manufacturers' operating guidance for the exact parts. Do not use one generic rotor-temperature number for every iron disc, carbon system or pad compound.

Measure before redesigning the nose of the car

Temperature paint, thermocouples and other brake-temperature tools can help answer whether the ducts are doing useful work. Combine that information with pedal feel, pad wear, disc inspection and lap length. If the brakes remain stable for the entire session, an enormous duct may not be the highest-value change.

If temperatures continue to climb, identify whether the limit is inlet pressure, duct restriction, rotor capacity, pad compound, driving demand or another part of the brake system before simply adding a larger hose.

Make the duct serviceable

Track cars get worked on between sessions. A duct that has to be destroyed to remove the upright or that hides a brake-line inspection point will eventually be left off or damaged. Use secure mounts, protect the hose from tire contact and make the parts around the hub accessible enough that the crew can inspect them.

Brake cooling works when the air has a job from the inlet all the way through the rotor.

For track-car brake, ducting, alignment and race-prep work, send Race Club your chassis, brake package and track use. More circuit tech is in the Road Racing journal.

Source checked September 23, 2026. AP Racing guidance is used to explain general race-disc cooling principles; exact ducting and operating temperatures depend on the installed brake package and vehicle.
