Race-Car Data Logging: Oil Pressure, Brake Pressure and the Channels That Actually Matter

A race-car dashboard can show twenty numbers and still fail to tell the driver the one thing that matters: whether the car is changing in a way that will cost the session. Data logging becomes useful when the channels answer specific questions instead of decorating the cockpit.

Oil pressure, brake pressure, temperatures, throttle position, RPM, speed and G-force are examples of channels that can turn a driver comment into something a crew can investigate. The goal is not to log everything. It is to log enough of the right information to understand what happened before changing parts.

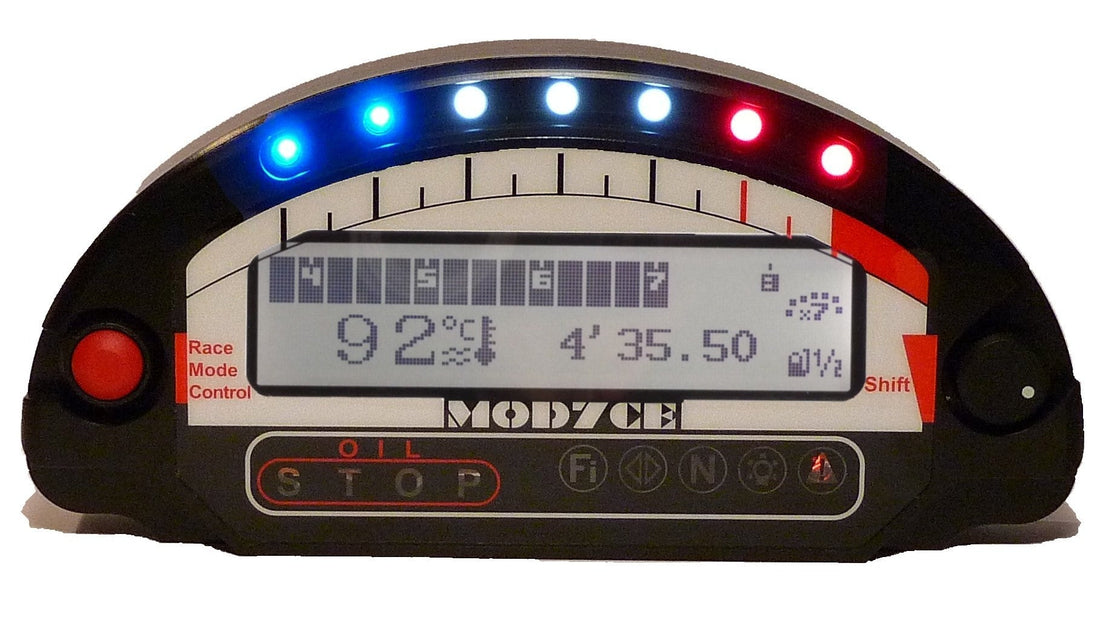

Featured photograph: digital racing dashboard and data-acquisition system. Representative motorsport data-logging image, not an AiM product. Photo by Philippe Balzano MOD7CE / Wikimedia Commons, licensed CC BY-SA 3.0.

Start with a question, then choose the channel

If the driver says the brake pedal changes after five laps, logging engine RPM at a higher sample rate will not answer the problem. Brake pressure, vehicle deceleration, wheel speed and perhaps pedal position are more directly connected to the complaint. If the concern is oil control in a long corner, oil pressure combined with RPM, lateral acceleration and time is more useful than a single minimum-pressure number remembered after the session.

AiM’s current 2026 racing guide describes pressure sensors for parameters such as engine oil pressure and brake-fluid pressure. It also specifically notes that brake pressure combined with G-force can help evaluate braking performance and driver input. That is the right mindset: channels become more useful when they are interpreted together.

AiM’s 2026 Racing Guide is a useful current reference for the types of sensors and logger functions available; the correct sensor range, installation and calibration still depend on the actual vehicle.

Oil pressure needs context

A dashboard alarm can protect an engine only if the threshold and logic make sense for that engine. A data log can go further by showing how pressure behaves against RPM, oil temperature, braking and cornering load.

That matters because a brief pressure change at idle is not the same event as pressure falling during sustained high RPM. Likewise, a repeatable pressure dip in the same high-G corner suggests a different investigation than a random electrical spike.

Do not copy pressure limits from another build. Use the engine builder, oil-system manufacturer and sensor documentation for the specific combination. The logger’s job is to preserve what happened accurately enough that the team can compare it with those limits.

Brake pressure can separate car behavior from driver input

Suppose lap time falls off and the driver says the brakes are fading. Brake-pressure data can help separate several possibilities. If the driver is commanding more pressure for less deceleration, the friction system, tire or track condition deserves attention. If the driver is applying less pressure earlier each lap, the change may be in confidence, traffic or technique rather than hydraulic capability.

No single channel proves a diagnosis. Brake pressure becomes more meaningful alongside speed, longitudinal acceleration, lap position and temperatures where available. The point is to stop guessing which part of the braking event changed.

Alarm logic should reduce workload, not create noise

The driver cannot study a spreadsheet at 120 mph. The dash should make critical information obvious and leave detailed analysis for the pit. Configure alarms around verified limits for the actual engine and systems, and avoid warning conditions that trigger constantly in normal operation.

An alarm the driver sees every lap becomes background noise. A well-designed warning should mean something actionable. The exact thresholds, delays and conditions belong to the component requirements and the calibration of the car, not a generic internet checklist.

Calibration and sensor placement are part of the data

A perfect graph from a badly installed sensor is still bad information. Use the sensor manufacturer’s installation requirements, confirm electrical supply and grounding, calibrate the channel correctly and inspect the wiring like any other race-critical circuit.

Label the configuration version when the car changes. If a sensor range, ECU calibration or logger math channel is updated, record it so an old session is not compared to new data as though nothing changed.

Build a short post-session routine

You do not need a full engineering department to benefit from logging. After each session, check a small list of channels tied to reliability and the driver’s complaint. Look at maximum and minimum values, but also look at where they happened and whether the behavior repeats.

Save a known-good session as a baseline. When the driver says the car is different, compare against that baseline before turning knobs. The biggest value in data is often not finding a new setup; it is proving which part of the car did not change.

A logger should make the race car easier to understand. If it only gives you more numbers, the system is collecting data without creating information.
