Rally Wheel Fitment Starts With Load, Brake and Tire Clearance

Rally, rallycross, hill climb and time attack can place very different demands on a wheel, but the selection process begins with the same fundamentals: brake clearance, tire support, load, serviceability and verified vehicle fitment.

Diameter, width and offset are not styling choices once the car is being driven at competition pace. Each dimension changes how the tire sits relative to the suspension, body and steering geometry.

Begin with the brake package

Measure caliper face clearance, barrel clearance and the relationship between the spokes and the outer portion of the caliper. A wheel can have the correct diameter and bolt pattern while still contacting the brake because its spoke profile or barrel shape is wrong.

Use a manufacturer template when one is available, then verify the assembled car. Wheel weights, valve stems and balancing clearance should be included in the check.

Choose the tire before finalizing width

The tire manufacturer’s approved rim-width range should guide the decision. A wheel that is too narrow or too wide can change sidewall behavior and the shape of the contact patch. Gravel, mixed-surface rallycross and paved time attack may require different priorities even on the same chassis.

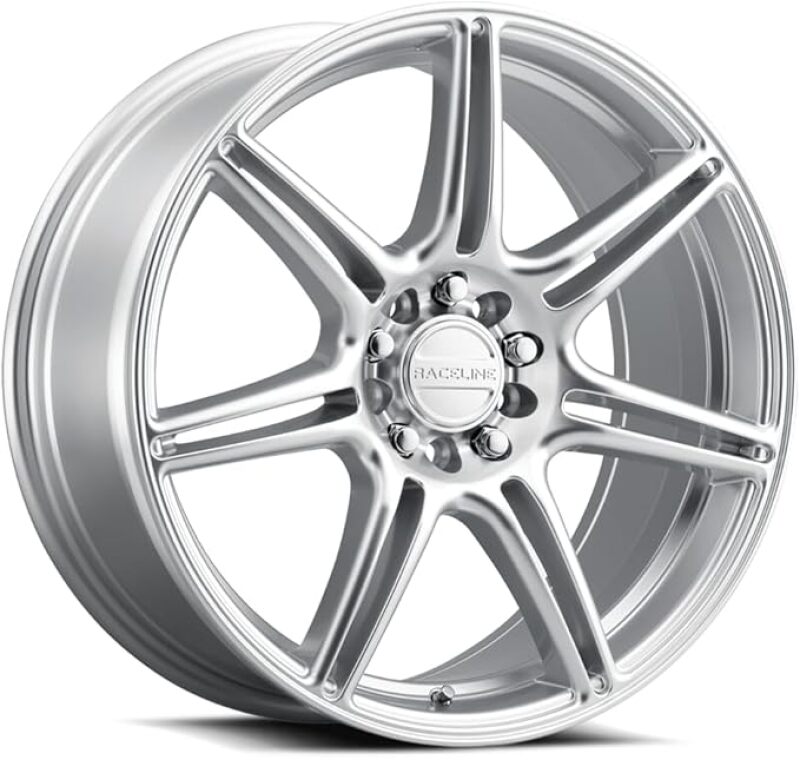

The Raceline 148HS Apex 17x7.5 is one active catalog example for applications matching its published bolt patterns, offset and center bore. Its dimensions must be checked against the specific vehicle, brake package and intended competition use.

Offset controls more than appearance

Offset changes inner clearance, outer body clearance and scrub radius. Moving the wheel outward can clear a spring or control arm while increasing bearing load and changing steering feel. Moving inward can improve fender clearance but create contact at the upright, tie rod or inner wheelhouse.

Check the wheel through steering lock and suspension travel. Do not use static fender position as the only test.

Plan for the environment

Loose surfaces introduce rocks, mud and impact loads. Hill climb and time attack add sustained heat and high cornering loads. The wheel, fasteners and tire need to match the discipline, vehicle mass and course conditions.

• Use the correct seat type for the wheel fastener.
• Verify hub-centric requirements and center-bore fit.
• Confirm brake cooling and temperature clearance.
• Inspect the inner barrel and bead area after impacts.
• Carry a service plan for damaged wheels and tires.

Do not assume a catalog label proves suitability

A wheel marketed for performance use is not automatically approved for every sanctioning body, load or surface. Confirm load rating, construction, size availability and competition rules with the manufacturer or supplier.

Race Club can source wheels across motorsport applications, including Raceline, Circuit Performance, Kansei, Rays and special-order options. Use Contact & Parts Help with the vehicle, brake setup, tire size and intended discipline so the package can be checked before ordering.
