Rally Car Underbody Clearance Must Be Checked Through Full Suspension Travel

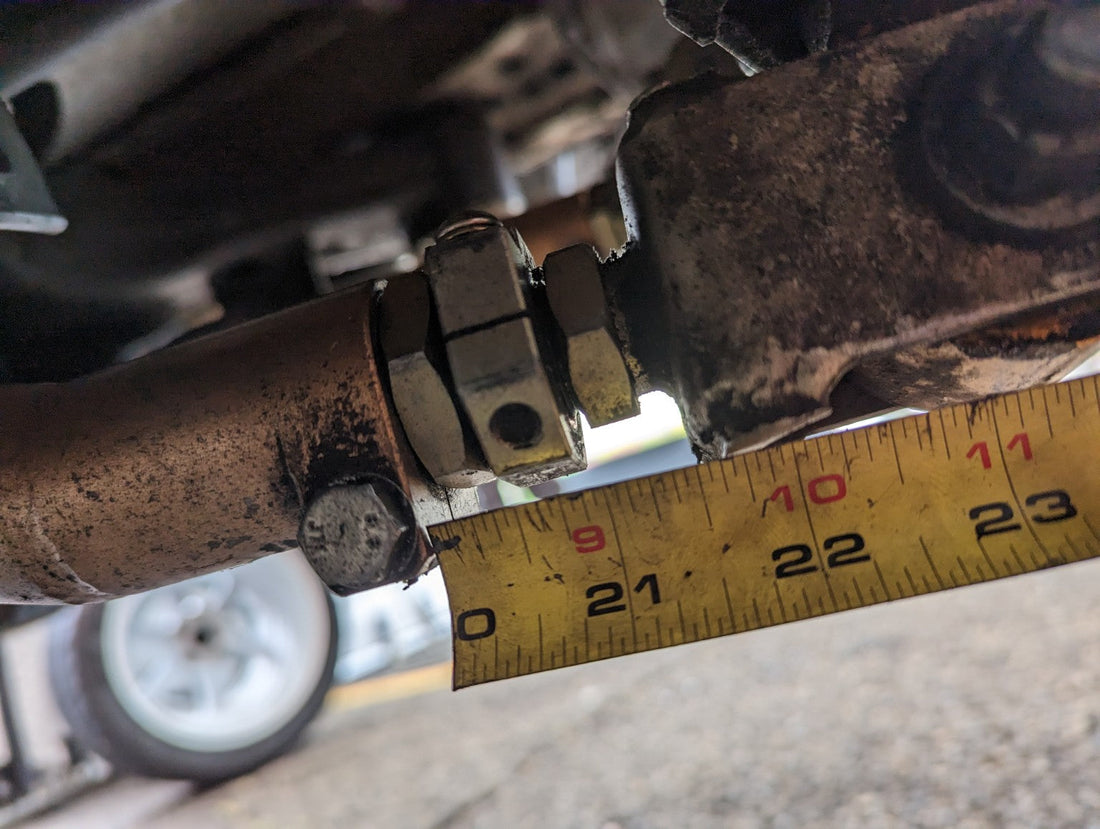

A tape measure under a stationary rally car can confirm one dimension. It cannot tell you what happens when the suspension compresses, the driveline moves under torque or the chassis lands on an uneven surface.

Map every moving relationship

Start at normal ride height, then inspect the underbody through bump, droop and steering travel. Watch the driveshaft, CV joints, exhaust, brake lines, fuel lines, skid plates and suspension links as systems that move relative to one another. A clearance that looks generous at static height can disappear when the differential rotates or a control arm reaches the upper part of its arc.

Pay close attention to long components. Small angular changes at a mount can create large movement farther down a driveshaft or exhaust section. Heat expansion adds another variable, particularly where a pipe passes near a crossmember or body seam.

Protect the car without creating a trap

Skid plates need space to deflect without contacting the component they are supposed to protect. They also need drainage and service access. A plate packed tightly against an oil pan or transmission can transfer impact directly into the casting. Use structure to spread the load and leave controlled crush or clearance space where appropriate.

Record the minimum clearances

Write down the smallest observed gap and the suspension position where it occurred. Photograph the measurement points. That record becomes valuable after a ride-height change, alignment adjustment or driveline service. It also helps the crew distinguish a new impact mark from an old packaging limitation.

For rally, rallycross and hill-climb cars, underbody reliability is built before the stage. Measure the car in motion as closely as the workshop allows, then inspect the same areas after the first shakedown.
