Hydraulic Bump Stops: How the Last Few Inches of Travel Save an Off-Road Race Truck

A hydraulic bump stop is not just an expensive rubber stop. On a properly designed off-road suspension, it is a short-travel damper whose job is to control the last part of compression before the chassis, tire, shock or suspension link runs out of room.

That last part of travel matters because the suspension is carrying the most energy when the wheel is moving upward fast and the available distance is disappearing. If the bump zone is too harsh, the truck kicks, skates or unloads. If it engages too late, the suspension can slam mechanically into the limit. If it engages too early, the car gives away usable travel and can feel artificially stiff.

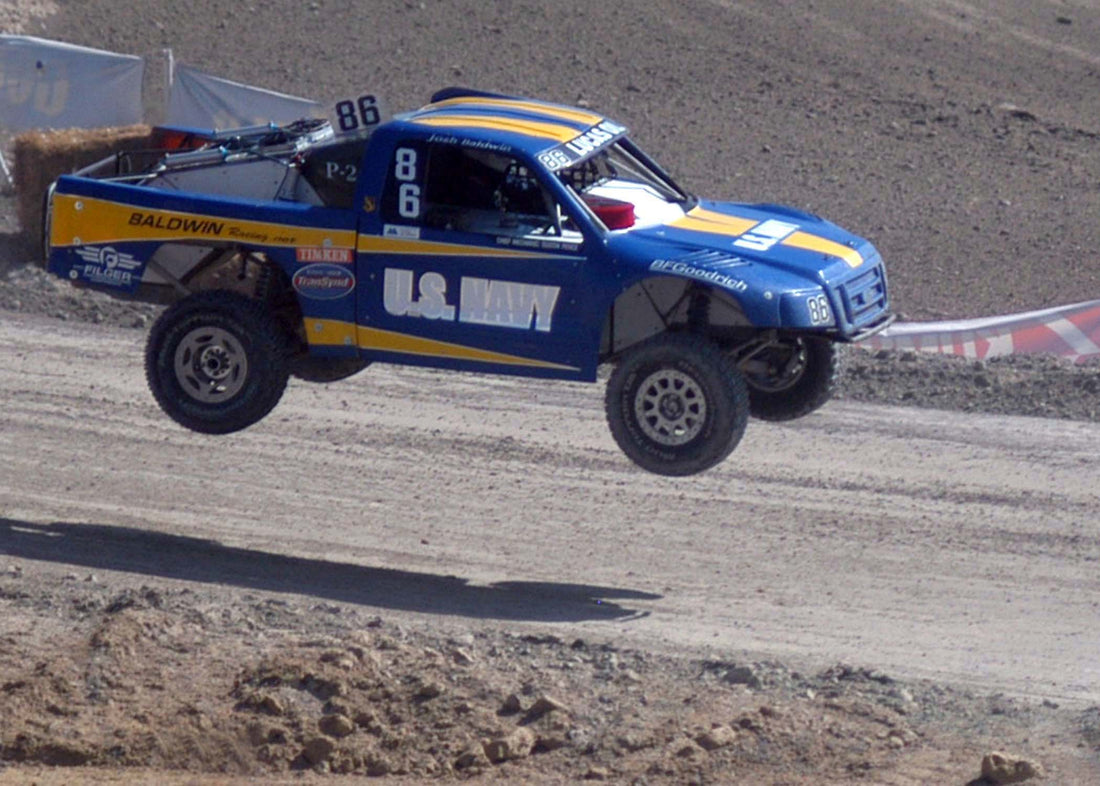

Featured image: U.S. Navy-sponsored Pro 2 truck in Championship Off-Road Racing competition. U.S. Navy photograph via Wikimedia Commons, identified as public domain in the United States. Representative archive media.

The bump stop is part of the spring-and-damper system

FOX describes its Factory Race hydraulic bump stops as purpose-built dampers for controlling the last few inches of suspension travel. Current FOX designs use oil and nitrogen with an internal separating element, and some models allow nitrogen-pressure adjustment to change bottoming control. FOX's Factory Race bump-stop documentation specifically frames the device as a way to use available travel without harsh bottoming.

That means tuning a bump stop is not separate from tuning the coilover or bypass shock. The primary spring, main damper, motion ratio, vehicle mass and expected impact speed all determine how much work is left for the bump stop at the end of travel.

Engagement point changes the whole feel of the truck

Where the bump stop contacts its strike pad determines when the extra spring and damping force enters the system. FOX's universal threaded-body designs allow mounting-height adjustment specifically so the engagement point can be fine-tuned.

If engagement is too early, the truck can ride on the bump stops through ordinary terrain and feel unnecessarily harsh. If engagement is too late, the bump stop has too little stroke remaining to absorb the impact progressively. The sweet spot gives the chassis enough free travel for normal suspension movement while reserving enough bump-stop stroke for large events.

Mounting structure has to carry the load

A bump stop can generate a large concentrated load at the exact moment the suspension is already heavily loaded. The can, bracket and strike pad need to put that force into real chassis structure. Thin sheet metal, a lightly supported tab or a bracket that can peel away from the frame is not enough just because the bump stop itself is strong.

The strike pad also needs to meet the bump stop squarely through the intended range. Side-loading the shaft or allowing the pad to glance off the edge can damage the unit and make engagement inconsistent. On fabricated long-travel systems, cycle the suspension through full bump with the spring removed before final welding so tire, axle, shock, bypass tube, brake hose and steering clearances can all be checked together.

Do not use the bump stop to hide bad main valving

If the truck is blowing through most of its travel too quickly on every moderate compression, adding a huge amount of bump-stop force at the end can create a two-stage problem: underdamped through the main stroke, then brutally stiff at the bottom.

The main shock should manage the majority of normal wheel movement. The bump stop should progressively catch the exceptional part of the event. If the driver is constantly on the bump zone, revisit spring rate, ride height, main compression damping, bypass tube settings and usable travel before simply adding more bump pressure.

What to check after hard impacts

• Fresh witness marks showing the strike pad is hitting off-center.
• Loose bump cans, cracked welds or distorted chassis tabs.
• Oil leakage around the bump-stop shaft or body.
• A bent or scarred shaft.
• Changes in ride height that alter the point where the bump stop engages.
• Tire-to-body, axle-to-frame or shock-to-chassis contact that occurred before the bump stop finished its job.

After a major landing or crash, do not assume the suspension is fine because the truck still rolls. The bump-stop bracket can move enough to change engagement without looking obviously broken.

The goal is controlled use of all the travel

Good off-road suspension does not avoid using bump travel. It uses that travel intelligently. The main spring and damper control most of the stroke, then the hydraulic bump stop progressively adds force before the suspension reaches a destructive mechanical stop.

Set the engagement point with the suspension fully cycled, build the mounts like structural components, and tune the bump zone with the rest of the damping package. The result should be a truck that lands and compresses hard without a violent kick or a metal-to-metal crash.
