Off-Road Race Cooling Systems: Airflow, Fan Shrouds and Heat Management

Off-road race cooling problems are rarely solved by radiator size alone. A larger core can add heat-rejection capacity, but only if the system can move enough air through it, keep that air from short-circuiting around the core, and keep the radiator clean enough to work after miles of dust, roost and debris. In a desert truck, short-course car or long-travel prerunner that actually sees competition use, cooling is an airflow system as much as it is a coolant system.

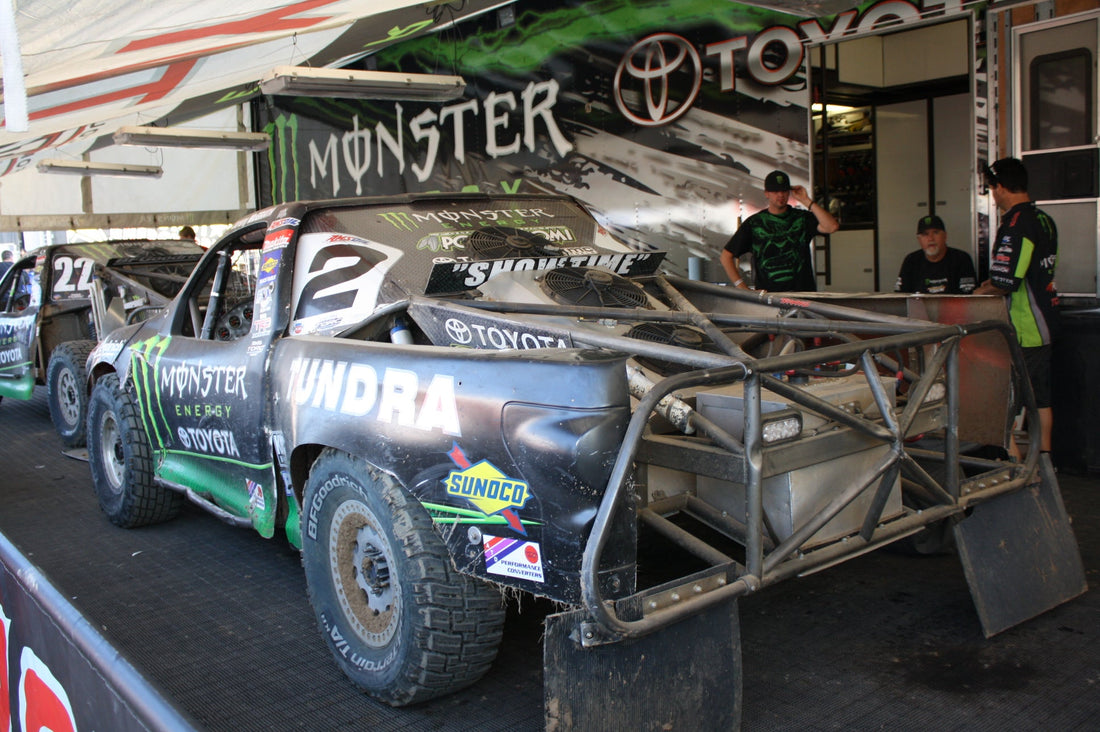

Featured photograph: archive Jeremy McGrath Trophy Truck at the 2009 Crandon World Championship. Representative off-road racing image, not a current Race Club vehicle or event. Photo by Royalbroil / Wikimedia Commons, licensed CC BY-SA 3.0.

A bigger radiator cannot fix bad airflow

The radiator needs a pressure difference across the core so air is forced through the fins instead of finding an easier path around them. That means the opening, ducting, shroud and exit path all matter. Gaps around the radiator can let incoming air bypass the core, while a poorly packaged rear-mounted radiator can pull hot discharge air back toward the inlet. Either condition can make a large radiator behave like a much smaller one.

Fan coverage matters most when vehicle speed is low or the car is working hard without much natural ram air. Griffin Thermal Products sells matched radiator, fan and shroud assemblies and specifically describes the shroud as a way to move air across the full core at low speeds and idle. Derale's primary-cooling fan assemblies use full aluminum shrouds around high-output electric fans for the same basic reason: the fan needs to draw through useful core area, not only the circle directly in front of the blades.

Seal the path, then manage the fan

Good ducting gives incoming air one useful place to go: through the heat exchanger. Seal large bypass gaps around the radiator, make sure the hot side has a real exit path, and keep the fan from fighting trapped pressure behind the core. Rear-mounted radiators need the same discipline. They still need a defined source of cool air and a discharge path that does not simply feed heated air back into the inlet.

For electric-fan systems, verify the fan is operating in the intended puller or pusher configuration, that its wiring can support the actual current draw, and that the shroud is not cracked or loose. Derale's high-output dual-fan packages, for example, list substantial current draw along with their airflow ratings. A fan that looks impressive but is fed through undersized wiring, a weak relay, a poor ground or an overloaded connector is not a reliable race-cooling solution.

Dust and mud turn cooling into a maintenance problem

Off-road racing adds a failure mode that road cars do not see at the same rate: the core can physically lose airflow as it loads with dust, grass, rubber, mud or roost. A protective screen can save the radiator from larger debris, but the screen itself becomes another surface that can clog. The right answer is not simply “add mesh.” It is to package the system so the crew can inspect and clean both the screen and radiator face quickly between sessions or pit stops.

Inspect the back side of the core too. Bent fins, mud packed between stacked heat exchangers, or a shroud that blocks inspection can all reduce effective cooling area.

Diagnose overheating by when it happens

The temperature pattern is useful evidence. If the vehicle is stable at speed but gets hot in slow technical sections or while waiting on grid, start with fan operation, shroud coverage and hot-air recirculation. If temperature climbs mainly during long high-load sections despite good vehicle speed, inspect the core for blockage and look harder at total heat-rejection capacity, coolant flow, system pressure and engine calibration.

If temperature suddenly changes after a hard landing or rough section, treat vibration as a clue. Check fan connectors, relays, grounds, blade clearance, radiator mounts and hose routing. Do not assume every temperature spike means the radiator is too small.

A between-session cooling check should be fast

• Inspect the radiator face, screen and back side of the core for blockage or bent fins.
• Confirm every fan runs, spins in the intended direction and is not contacting the shroud.
• Check duct seals, shroud mounts and radiator mounts for cracks or movement.
• Inspect hoses for abrasion, collapse, kinks and contact with suspension or chassis parts.
• Look for coolant residue, pressure-cap problems and changes in the expansion or overflow level.
• Compare coolant-temperature data with the car's normal baseline instead of judging one peak number in isolation.

A dependable off-road race cooling system is the combination of radiator capacity, airflow, coolant circulation, electrical reliability and serviceability. Build it so the air has a controlled path, the crew can reach the parts that need inspection, and the system can survive vibration and contamination without becoming a mystery when temperatures rise.
