Hydraulic Bump Stops: Why the Last Inches of Off-Road Suspension Travel Matter
A long-travel race truck can have excellent shocks and still hit the end of compression hard enough to upset the chassis. The last part of suspension travel needs its own plan.
Hydraulic bump stops are one way race trucks manage that final portion of compression. They are not there to replace the main dampers. They add progressively useful control near the end of travel so a large hit does not turn the suspension stop into a metal-on-metal event.

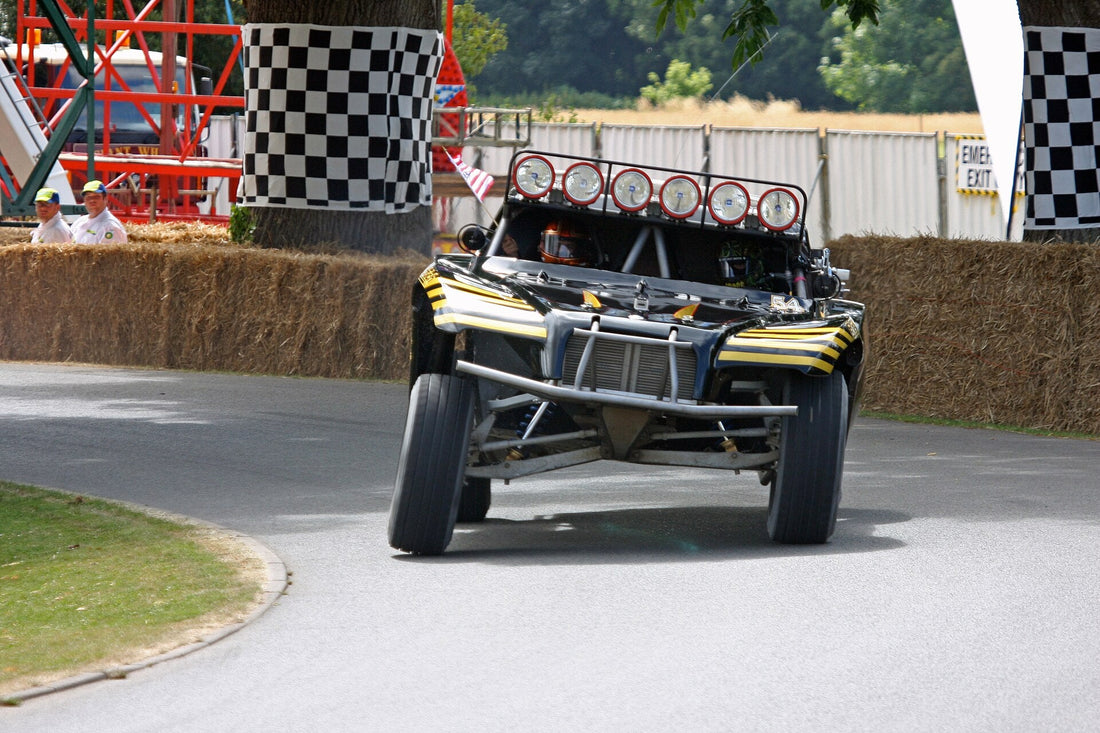

Featured photograph: 2009 trophy truck. Representative off-road race-truck image used for suspension discussion. Photo by Brian Snelson / Wikimedia Commons, licensed CC BY 2.0.
The bump stop is part of the damper strategy
FOX describes its current Factory Race Series 2.0 bump stop as a component designed to increase damping and bottom-out control in the last few inches of suspension travel. That description is important: the bump stop is not just a hard safety block. It becomes another velocity-sensitive element as the chassis approaches full compression.
The exact force curve, travel and pressure belong to the specific product and tune. Do not take one bump-stop pressure or engagement dimension from another vehicle and treat it as a universal off-road specification.
Engagement timing changes how the chassis feels
FOX's threaded-body bump stop allows mounting height to be adjusted so the stop engages at a chosen point during up-travel. Engage too early and the truck may spend too much of normal driving on the bump stop. Engage too late and the main shock may already be near the end of its usable stroke before the bump system has time to contribute.
That is why bump-stop setup needs the actual suspension travel mapped first. Know full bump, ride height, shock position and the tire/body clearance. Then determine where the bump stop starts contributing relative to those limits.
The bump stop cannot fix a suspension that is mechanically out of travel
Before tuning bump stops, verify that the shock, control arms, steering, CV joints, driveshafts, brake lines and tires all have the intended range of movement. If another component reaches its limit first, the bump stop is no longer controlling the final motion.
The same applies at droop. Limit straps, shock length or driveline geometry may define the extension limit depending on the vehicle. Compression and droop limits should be deliberate, not discovered by whatever part binds first.
Heat still matters
Hydraulic bump stops convert suspension energy into heat just like dampers do. Repeated large impacts can change the temperature of the fluid and body. FOX's current design uses an internal floating piston to separate oil and nitrogen on the referenced product, with the goal of reducing cavitation and inconsistent behavior.
That does not make the component maintenance-free. Inspect for leakage, shaft damage, loose mounts and changes in strike-pad condition. Follow the manufacturer's service and pressure procedures for the exact bump stop rather than treating it as a sealed lifetime component.
The strike location has to be structurally real
The bump stop transfers large loads into the chassis or suspension member where it lands. A beautifully tuned hydraulic unit cannot help if the strike pad, can mount or surrounding structure flexes or tears away.
During fabrication, look at the load path from the bump-stop body through its mount and from the strike pad into the suspension or axle structure. Keep the contact aligned through the intended travel so the stop is not being side-loaded as the suspension moves.
Use bump-stop marks as data
After testing, inspect where and how often the bump system is being used. Witness marks, travel indicators, video and damper-position data can help distinguish occasional large-hit engagement from a truck that is living on the stops.
If the bump stop is involved in every small compression, changing its pressure may not be the first answer. Ride height, spring rate, main-shock damping, motion ratio or engagement position may need attention. Treat the bump stop as part of the whole suspension tune.
The best bottom-out event is controlled, not invisible
A race truck will eventually use deep travel if it is being driven hard enough. The goal is not to pretend that never happens. The goal is to make the transition into the last part of travel progressive enough that the tire and chassis remain controlled.
Long travel gives the truck room. The bump-stop strategy decides what happens when that room is almost gone.
