Long-Travel CV Axles: Plunge, Joint Angle and Why More Suspension Travel Can Break Parts
Long-travel suspension creates room for the tire to move. The axle has to survive everything that extra motion does to the driveline.
As an independent suspension cycles through bump and droop, the distance and angle between the differential output and wheel hub change. If the CV joints do not have enough articulation or plunge for that motion, more wheel travel can become less reliability.

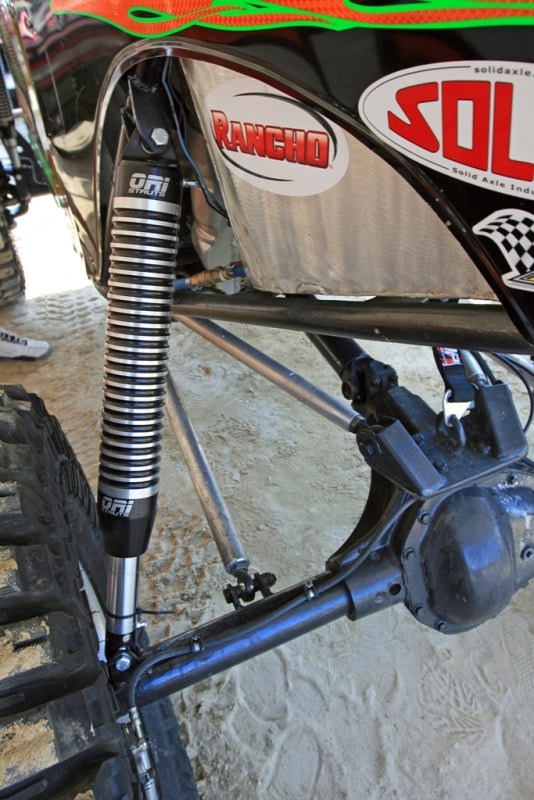

Featured photograph: long-travel suspension on a rock racer. Representative off-road suspension image. Photo by oristruts.com / Wikimedia Commons, released under CC0 1.0.
Plunge is what allows the axle length to change
GKN Automotive explains the basic concept clearly: in many applications, the inboard CV joint is a plunge joint that lets the effective sideshaft length change as the suspension moves.
That motion is not unlimited. Each joint has its own geometry and travel. RCV Performance, for example, publishes 1.063 inches of total plunge and a 28-degree maximum angle for its Series 30 plunging CV joint. Those figures belong to that specific RCV product and should not be treated as generic limits for another joint.
Angle and plunge have to be checked together
A joint can be within its angular limit and still run out of plunge. It can also have enough plunge and be operating beyond the angle the joint was designed to accept. The complete suspension path has to be measured.
That means checking the axle at full bump, ride height and full droop, and through steering travel on driven front axles. The correct clearances depend on the joint, hub, differential location, suspension geometry and actual axle length.
Do not assume a stronger axle fixes bad geometry
Higher-strength materials can improve torque capacity, but they do not make geometry disappear. RCV's own application notes for some long-travel UTV axles tell users to remeasure when suspension arms or angles are moved outside stock specifications because axle length is affected.
That is the right mindset for a race truck as well. If control-arm pivots, track width, differential position, ride height or wheel travel change, verify the shaft length and joint motion rather than ordering the strongest axle available and hoping it fits the kinematics.
Fixed and plunging joints do different jobs
RCV's Series 30 fixed CV products publish no plunge and substantially different articulation figures than its plunging joints. Again, the exact values are product-specific, but the distinction matters: one joint may be intended to accommodate angle while another also manages axial movement.
Know which end of the axle is expected to plunge. If both ends are effectively trapped and the suspension demands length change, the load has to go somewhere. Bearings, joints, shafts and differential outputs can become the unintended stops.
Heat and boots belong in the inspection
High articulation and repeated torque cycles create heat in the joint. Boots live beside suspension, brakes, exhaust and debris. A torn or heat-damaged boot can turn a healthy joint into a contaminated one quickly.
Inspect the boots, clamps and surrounding clearance before every race. Look for grease sling, cracking, pinching at full droop or steering angle and evidence that the boot is touching another component. Use the grease and service procedure specified for the actual joint.
Measure the suspension before ordering the axle
The safest workflow is geometry first, part number second. Establish the intended bump, droop and steering range. Measure the distance between joint centers through that movement. Determine the required plunge and maximum angle, then compare those requirements with manufacturer data for the exact joint and shaft assembly.
Do not copy a CV-angle limit from another joint, even if both are called 930, 934 or Series 30. Construction, cage, race, housing and intended use can differ.
More travel is only useful when the driveline can use it
Long-travel suspension is a system: control arms, steering, shocks, bump stops, limit straps, axles, joints and packaging all have to agree on the same motion.
If the shock has three inches of travel left but the CV joint has already reached its limit, the axle—not the suspension—is now controlling the wheel.
For off-road fabrication, suspension and driveline packaging, send Race Club the chassis, suspension geometry and axle package. Continue with the Off-Road Racing journal.
