Rear Suspension Links Are Chassis Parts: What Matters Before You Order

A rear suspension link is not simply a tube between two rod ends. In an off-road race truck, its length, material, joint size, bracket spacing and mounting angle all become part of the suspension geometry and the load path through the chassis.

That is why link selection starts with measurements and intended use—not with whichever finished part looks closest in a photograph.

Define the suspension before choosing the link

Record the axle position, wheelbase, desired travel, bracket separation and available clearance at full bump and full droop. The link must clear the chassis, driveshaft, exhaust, shocks, brake lines and surrounding structure throughout the suspension cycle.

A link that fits at ride height can still contact the frame under compression or bind a joint near the end of travel. The mock-up needs to include the real axle, wheel and tire package whenever possible.

Material and construction are only part of the answer

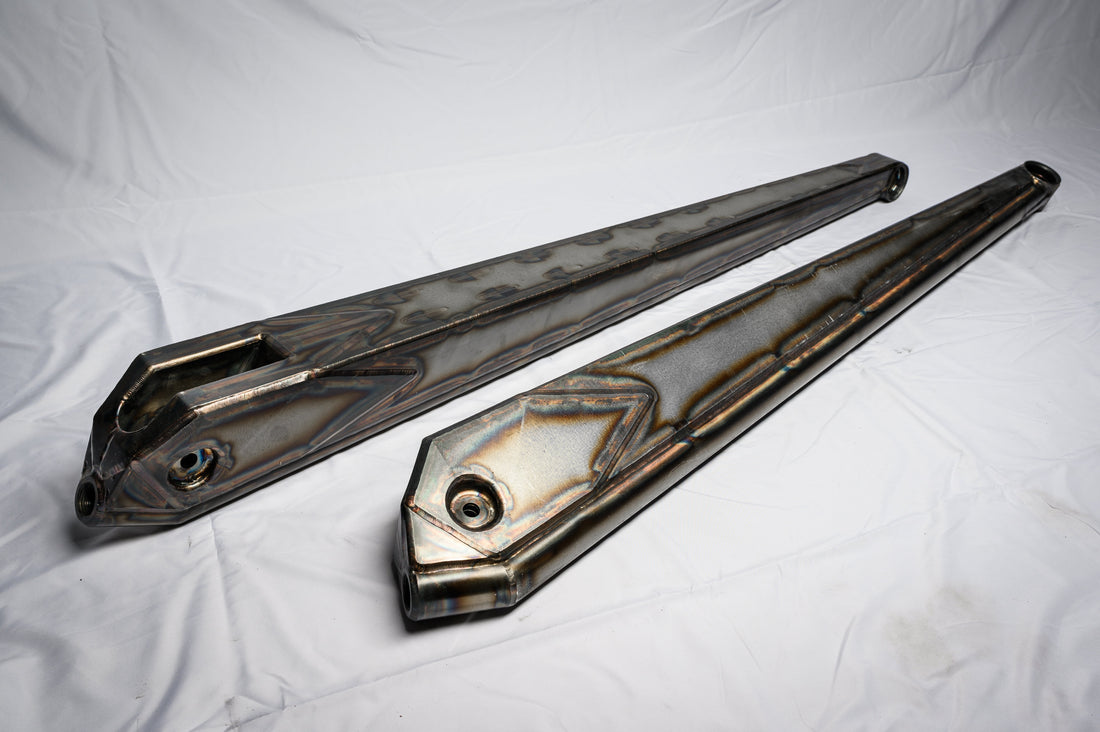

The Izzy Fab 55-inch 4130 TIG-welded short-course links are an example of a fabricated competition component available through Race Club. The published length and construction identify the product family, but they do not confirm that the link is correct for a particular truck.

Before ordering, verify the required center-to-center range, rod-end size, misalignment requirements, bracket width and hardware diameter. Confirm whether the suspension design needs adjustment at the joint or a fixed-length assembly.

Joint angle matters through the entire travel

A rod end can appear centered at ride height and still run out of articulation at bump, droop or axle roll. Cycle the suspension without springs or with the coilovers disconnected so resistance from the spring does not hide a bind.

• Check both sides together and independently.
• Watch the joint at full bump and full droop.
• Confirm clearance during axle articulation.
• Verify that misalignment spacers seat correctly.
• Keep the joint away from bracket edges through the complete arc.

Brackets carry the same load

A high-strength link does not repair weak or poorly positioned chassis tabs. Brackets need suitable material, weld access, load distribution and room for the joint to articulate. Thin tabs can spread, single-shear mounting can create unnecessary leverage, and a bolt tightened against the wrong spacer stack can damage the joint before the vehicle moves.

Weld spacers such as the Izzy Fab 1.5-inch shock weld spacers are another example of a small component that must be selected around the actual tube, bracket and hardware package rather than by appearance alone.

Geometry determines behavior

Link angle and separation influence anti-squat, pinion movement, axle steer and how loads enter the chassis. Changing a mounting hole can alter several behaviors at once. For a new chassis or major suspension conversion, model the geometry and document the target ride height before final welding.

Inspect it like a race component

Mark fasteners after torque verification, inspect rod ends for play, and look for fresh contact marks after initial testing. Dirt can hide cracked paint, loose hardware or a bent bracket, so cleaning is part of inspection.

Race Club can help verify dimensions and application requirements for Izzy Fab off-road fabrication parts. Many competition components are application-specific or special order, so confirm the complete package before purchase.
