Off-Road Steering Shafts Need Support, Clearance and a Clean Load Path
On an off-road race vehicle, the steering shaft lives in a hostile environment. The chassis twists, the column sees repeated impacts, and the engine, headers and suspension consume the available space. A shaft that feels acceptable on the shop floor can bind or deflect once the vehicle is loaded.
Support the shaft without creating a bind

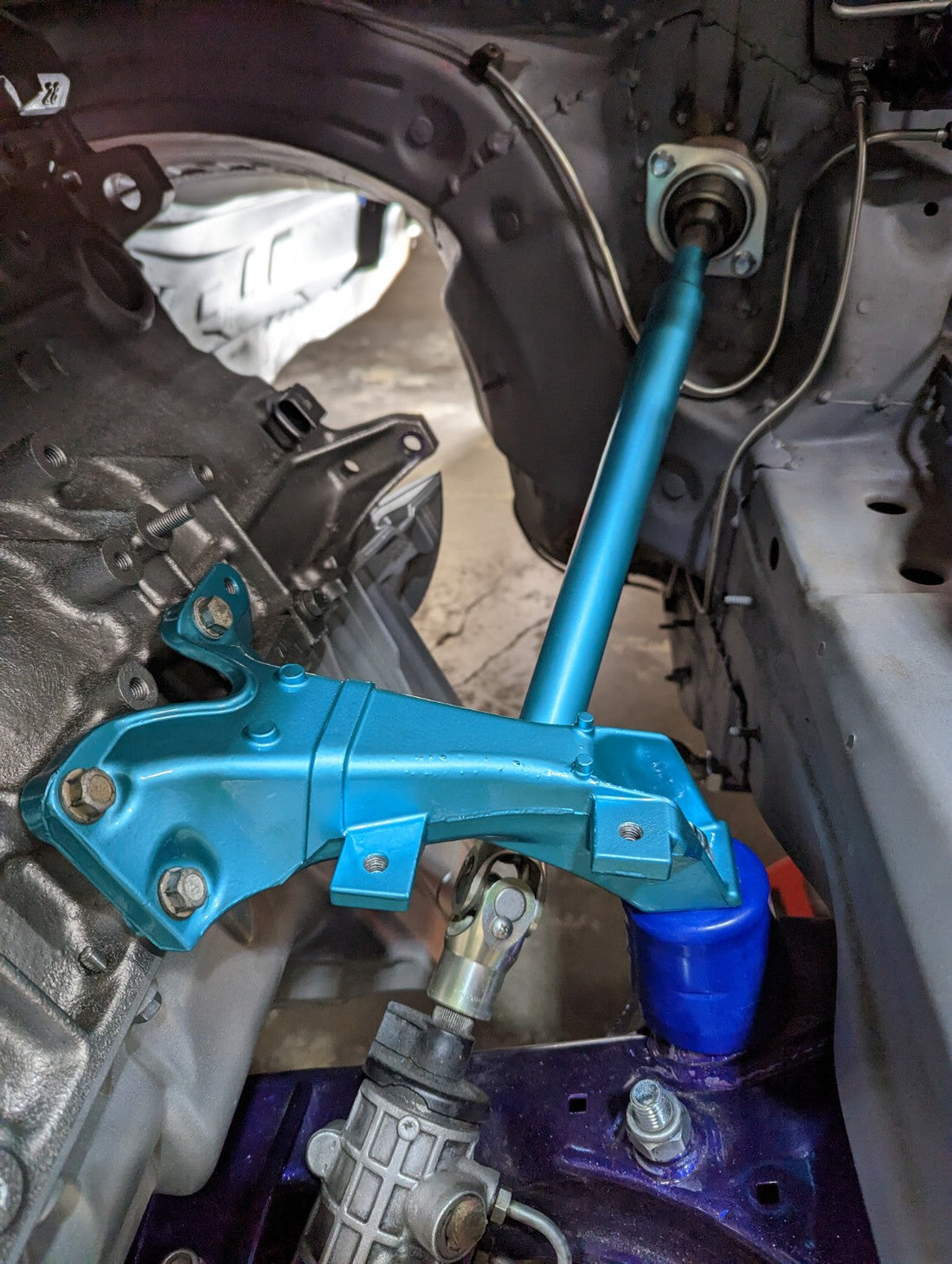

A support bearing should control shaft movement while allowing the universal joints to operate within their intended angles. Placing the support too close to a joint can over-constrain the assembly. Placing it too far away can let the shaft whip or push laterally under steering load. Establish the column, rack or box input and chassis pickup points before finalizing the intermediate support.
Rotate the steering through its full travel with the vehicle at normal ride height, full bump and droop where packaging changes are possible. Check for tight spots by feel, then disconnect components if necessary to isolate the source.
Clearance is dynamic
Headers move with the engine. Suspension links sweep through an arc. Panels and hoses shift under vibration. Give the shaft enough room that a failed mount or a hard chassis hit does not create immediate contact. Heat protection should not become a substitute for physical clearance, particularly near joints and bearings that depend on lubrication.
Make inspection possible
- Use positive fastener retention appropriate to the joint design.
- Mark critical fasteners so movement is visible during inspection.
- Keep welds, splines and pinch-bolt areas accessible.
- Check for corrosion, play and witness marks after every rough event.
Steering is not the place to accept “probably enough.” A clean load path, controlled shaft support and verified dynamic clearance turn a complicated packaging problem into a system the driver can trust.
