Stop Guessing at Master Cylinder Bore: Start With Pedal Ratio and Work the Brake System Backward
A race car with a bad brake pedal makes people reach for master cylinders way too quickly.
The pedal is hard, so somebody says the bore is too big. The pedal travels too far, so somebody says the bore is too small. Sometimes they are right. Sometimes the master cylinder is being blamed for a leverage problem that started six inches earlier at the pedal.
The system has to be worked from the driver’s foot all the way to the caliper.
Start with pedal ratio
Pedal ratio is leverage. If the distance from the pedal pivot to the driver’s foot is five times the distance from the pivot to the master-cylinder push point, the mechanical ratio is 5:1.
Wilwood’s own technical material shows the basic relationship clearly: total input force into the master-cylinder system is pedal effort multiplied by pedal ratio.
So 100 pounds of driver effort through a 6:1 pedal does not act like 100 pounds at the master cylinder. It acts like roughly 600 pounds before the balance-bar split and hydraulic conversion are considered.
That is why changing master-cylinder bore without knowing the pedal ratio is backwards. You are changing the hydraulic side before confirming the mechanical side.
Master-cylinder bore trades pressure for travel
Once the force reaches the master cylinder, bore area changes what happens next.
Wilwood’s technical guidance is straightforward: a larger-bore master cylinder generally produces less hydraulic pressure for the same input force and moves more fluid with less stroke. A smaller-bore master generally produces more pressure for the same input force but requires more pedal travel to move the same volume.
That is the trade.
There is no universally “better” bore. The correct bore has to match the pedal ratio, caliper piston area, required fluid displacement, desired pedal travel and the force the driver can comfortably and consistently apply.
A balance bar does not fix bad sizing

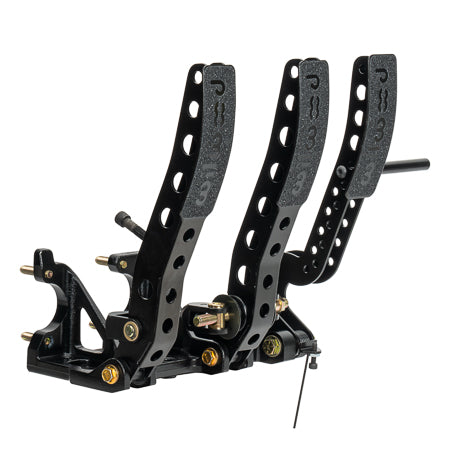

Dual-master-cylinder race systems add another variable: the balance bar.
With the bar centered, the pedal force is approximately split between the front and rear master cylinders. Moving the bar changes that distribution.
That adjustment is there to trim front-to-rear brake balance. It is not supposed to rescue a system where the master-cylinder sizes are fundamentally wrong.
If the car only works with the balance bar cranked way off center, that should trigger a deeper look at bore sizing, caliper area, pedal leverage and the rest of the system.
Wilwood specifically recommends selecting the system so the balance bar can operate reasonably near center, leaving room for useful adjustment in both directions.
Bell cranks can hide another ratio in the system
Some pedal-box layouts use a bell crank between the pedal and master cylinders. That creates another mechanical ratio.
Wilwood’s 340-14380 remote Tru-Bar is a good example. Wilwood describes it as adding roughly 1.5:1 average leverage. A 5:1 pedal feeding that mechanism can behave more like an overall 7.5:1 system. A 6:1 pedal can become roughly 9:1.
If somebody measures only the visible pedal and ignores the bell crank, the calculation is wrong before it gets to the hydraulics.
This is why brake-system math needs the entire linkage path.
Pressure gauges are more useful than arguing about pedal feel
Pedal feel matters because the driver has to use the system, but pressure gauges can tell the team what the system is actually producing.
Wilwood’s data sheets show pressure testing as a way to verify front and rear hydraulic pressure and confirm what the balance-bar position is doing.
That gives the team something concrete to compare against driver feedback.
If the driver says the car is too front-biased and the pressure data shows a large front/rear split, the two observations agree. If the driver says the pedal is impossibly hard but the pressure is low everywhere, the problem may be total leverage or bore choice rather than bias.
Do not ignore pedal travel
A high-pressure system that requires excessive pedal travel is not automatically a good system.
The driver needs enough travel to modulate the brakes, but not so much that the pedal approaches the floor, interferes with heel-toe work or changes dramatically as temperatures rise.
That means the system has to move enough fluid for the calipers while still keeping the pedal in a usable range.
A smaller master can improve leverage but increase travel. A larger master can shorten travel but increase the required leg force. The correct choice lives between those extremes for the actual car.
Mechanical stiffness matters too
Not every long pedal is hydraulic.
Pedal-box flex, firewall flex, bracket movement, balance-bar binding, pushrod misalignment and caliper deflection can all consume pedal movement without creating useful clamp load.
Before changing bore sizes, have somebody apply the brake while another person watches the pedal box and master-cylinder mounts. If the structure is visibly moving, fix the structure.
Race-car parts cannot do their job if the chassis around them is acting like another spring.
Driver fit is part of brake-system design
The driver should be able to reach full braking force without locking the knee straight or pulling against the harness to generate leverage.
Seat position, pedal position and steering position all affect what the driver can actually do repeatedly.
A mathematically perfect brake system that requires an awkward body position is not a finished installation.
Use the math before buying another master cylinder
The useful order is:
Confirm the actual pedal ratio. Include any bell-crank ratio. Confirm the balance-bar arrangement. Calculate or measure the hydraulic pressure. Check pedal travel. Verify mechanical stiffness. Then evaluate master-cylinder bore.
That process is slower than ordering a different master cylinder because somebody on the internet said a 3/4-inch bore “feels better.” It is also much more likely to fix the actual problem.
Brake systems are safety-critical. Use the current component manufacturer documentation, the controlling rulebook for the series and a qualified fabricator or race-prep professional when designing or modifying the system. The examples here explain the relationships; they are not a universal bore-size prescription for every car.
Sources: Wilwood: Pedal Ratios and How to Find Them; Wilwood: Figuring Pedal Ratios in Bell-Crank Systems; Wilwood pedal and balance-bar technical data sheet; Wilwood master-cylinder sizing and brake-system guidance.
