FIA 8874-2019 Rain Lights: Why a Bright Red LED Is Not Automatically the Right Race Light
A rear rain light looks simple enough that it is easy to treat it like any other red LED panel.
That is exactly why it deserves more attention.
The FIA updated Technical List No. 76 on September 16, 2026. The list identifies race-car rain lights approved to FIA Standard 8874-2019, including the exact manufacturer, model, homologation number, permitted orientation and homologation validity.
If a series requires a light from that list, “it is really bright” is not the same thing as “it is the approved part.”
The Homologation Number Is the Starting Point
Technical List 76 is organized around homologation numbers such as RL.001.21, RL.009.22 and RL.010.22. Those numbers connect the physical product to the FIA approval record.
For example, Lifeline’s 421-100-011 is listed as RL.001.21. Cartek’s rectangular CK-LRS-15RM carries RL.009.22, while its circular CK-LRS-16CM carries RL.010.22.
That is more useful than shopping by appearance. Two lights can both have red LEDs and similar dimensions while only one is the exact approved model required by a rulebook.
Orientation Can Be Part of the Approval
The FIA list includes a configuration field for orientation. The Lifeline RL.001.21 unit is approved for horizontal or vertical installation. Other approved lights may be listed only for one orientation.
That is important because optical performance is not just a function of raw brightness. The housing, lens and LED pattern are designed to project light in a defined way. Rotating a unit that is approved only in one orientation can change where that light goes relative to following drivers.
The FIA presentation form for the Lifeline unit also specifies installation orientation with defined angular tolerance. That is a reminder to fabricators that a rain light should not simply be mounted wherever a flat tab happens to fit.
Brightness Is Only One Part of Visibility
Lifeline publishes an average output of 3269 candela for the 421-100-011 and a 4 Hz flashing mode. Cartek states that its current 8874-2019 rectangular and circular units can also operate in static or 4 Hz flashing mode.
Those numbers help describe the products, but the race team still has to make the light visible on the car. A high-output unit mounted behind bodywork, aimed badly, coated in tire debris or hidden by a rear wing structure can perform worse in the real world than the specification suggests.
Mounting position should be evaluated from the viewpoint of a following driver, including when the car is loaded under braking or acceleration.
Wire It Like Safety Equipment
A rain light is part of the safety system, so the electrical installation should be treated accordingly. Use proper strain relief, protect the harness from heat and abrasion, keep connectors out of direct spray when practical and make the circuit serviceable without dismantling half the rear of the car.
Do not assume the current draw is trivial just because the device uses LEDs. The manufacturer documentation should control wire sizing, switching and supply requirements.
It is also worth checking what the governing series expects from the control logic. Some applications use a simple driver-operated switch. Others may require a defined flashing mode or tie the light into specific vehicle states. The homologation confirms the product; the rulebook controls how that product must be used in your series.
Check the End Date Correctly
Technical List 76 includes a start and end date for each homologation. The list notes that the homologation end date represents the final date on which the rain light may be manufactured under that homologation.
That wording matters. It is not automatically the same thing as a blanket “throw this light away after this date” rule for every championship. Eligibility in an existing car still depends on the rules that govern that event or series.
For that reason, a team should verify three things separately: the exact homologated model, the FIA technical-list status and the current series rulebook.
Do Not Substitute an Older Spec Without Checking
Older rain lights can still be useful in championships that allow them, but a unit built to a previous standard should not be represented as 8874-2019 compliant unless it actually carries the relevant approval.
This is especially easy to miss when a manufacturer offers older and newer products with similar shapes. The safe purchasing process is part number first, homologation number second, visual confirmation third.
The Practical Pre-Race Check
Before the car leaves the shop, confirm that the light powers on reliably, the required static or flashing mode works, the lens is clean and undamaged, the mount is tight and the light is visible from directly behind the car.
Then inspect the label and compare it with the controlling technical list. Five minutes in the shop is cheaper than discovering at technical inspection that the car has a very expensive red light that is not the one the rule requires.
Sources: FIA Technical List 76 landing page; FIA Technical List 76 PDF; Lifeline 421-100-011 manufacturer documentation; Cartek 8874-2019 product documentation.

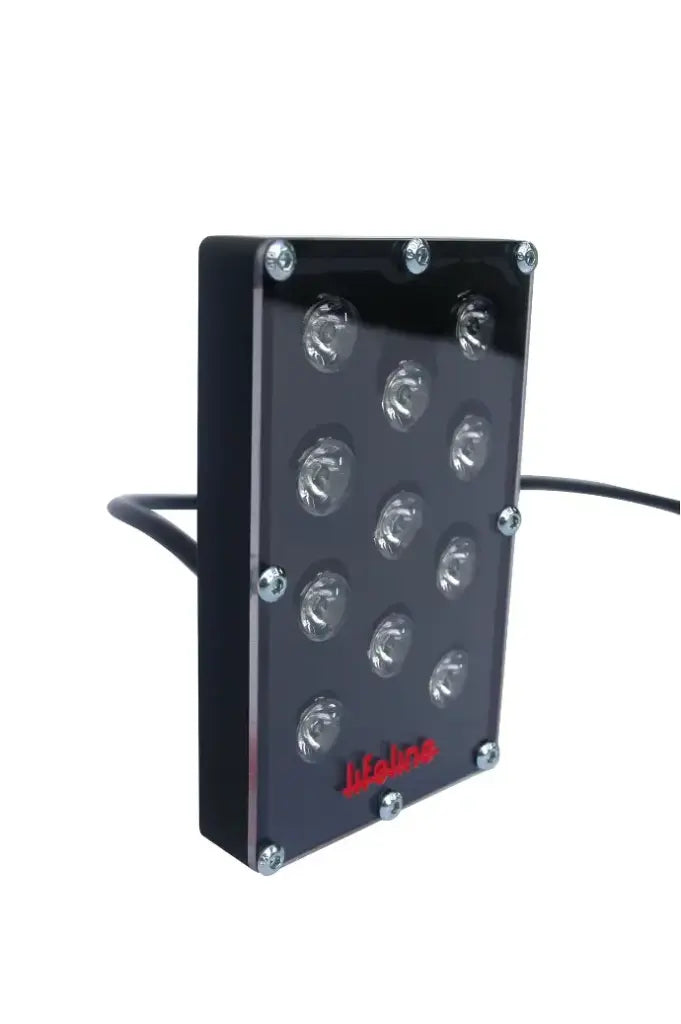

Photo credit: Lifeline Fire & Safety Systems manufacturer media. Verify the controlling rulebook for your series before purchasing or installing any safety component.
