Harness Angle Is Chassis Geometry: Move the Seat and You Changed the Safety System
A harness bar does not have one correct height for every driver.
The seat position, driver height, head-and-neck restraint and shoulder location determine where the shoulder belts need to travel.
Move the seat and you changed that geometry.
That is why harness installation should be treated like chassis setup, not interior decoration.
The shoulder belt should leave the driver cleanly
SFI’s seatbelt installation guide for upright seating specifies a shoulder-belt angle from horizontal of 0 to 20 degrees downward, with approximately 10 degrees downward identified as optimum for the configuration covered by that guide.
The guide also emphasizes a clear belt path from the top of the shoulder or head-and-neck restraint to the harness bar or mounting point without interference from the seat openings.
That last part matters.
A mathematically correct anchor point can still be a bad installation if the belt is rubbing hard on the seat shell or slot edge.

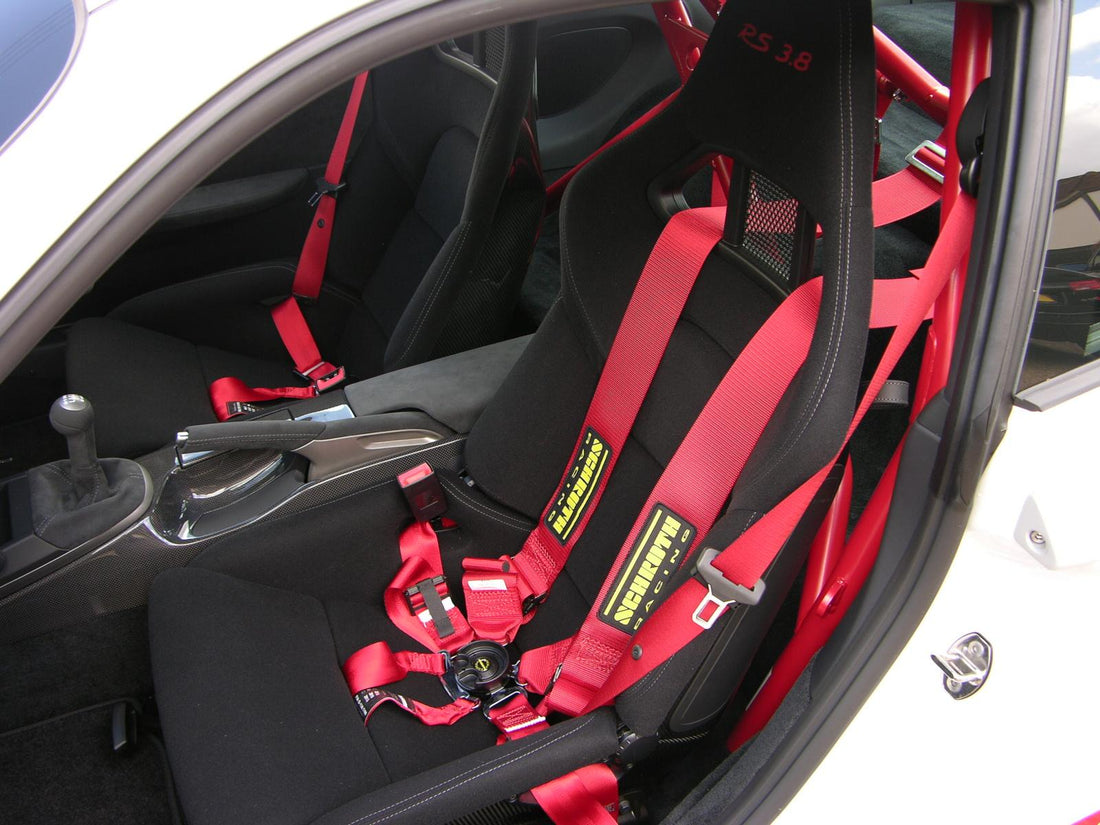

.jpg)
The seat slot is not the anchor point
The harness does not become correct because it passes through the shoulder opening in the seat.
The belt continues beyond the seat to the actual anchorage.
The load path has to remain clean from the driver or frontal head restraint to that anchorage.
FIA Appendix J Article 253 likewise requires shoulder straps to be installed according to defined geometry and warns that hard parts of the anchorage system or rolled webbing should not contact the seat or protrude inside the shoulder openings when the driver is restrained.
Seat height changes harness-bar requirements
Lower the seat two inches and the shoulder belt angle changes even though the cage did not move.
Raise the seat for a shorter driver and it changes again.
Move the seat forward and the belt length and wrap geometry change.
That is why a cage should not be considered finished for the driver-restraint system until the actual seat, driver position and restraint hardware are established.
The head-and-neck restraint becomes part of the belt path
When a frontal head restraint is used, the shoulder belts need to sit correctly on the device as well as the driver.
Belt spacing and angle affect whether the belts remain located on the restraint during a crash.
This is not a place to improvise from photographs of somebody else’s car.
Use the restraint manufacturer’s installation requirements together with the harness manufacturer and sanctioning-body rules.
Shorter is generally easier to control
SFI’s guide recommends shoulder belts be as short as practical back to the mounting points.
Long unnecessary belt runs add webbing length and create more opportunities for routing problems, interference and incorrect wrapping.
That does not mean moving the anchor forward simply to shorten the belt.
The anchor still has to be in the correct geometry.
Do not anchor the harness to the seat
FIA rules for relevant competition vehicles explicitly prohibit anchoring safety harnesses to the seat or its supports.
The restraint needs a suitable structural anchorage.
That is an important distinction because a seat mount and a harness mount do different jobs in a crash.
Harness-bar placement belongs in cage planning
If the car is receiving a roll cage, the harness-bar position should be planned around the intended seating package and driver position rather than added as an afterthought.
Race Club is a CageKits dealer and installer, and this is one reason we treat cage, seat and restraint layout as one system rather than three unrelated purchases.
A chassis-specific cage kit can provide a strong starting structure, but final harness geometry still has to be verified for the actual driver and equipment.
Browse CageKits through Race Club or contact us for cage, seat and harness installation work.
Recheck geometry whenever the seating package changes
A new seat, new side mounts, new floor brackets or a different driver can all move the shoulder location.
After any change, sit the actual driver in the car with the complete restraint system and head-and-neck device.
Look at belt angle, belt spacing, lap-belt position, crotch-belt routing and interference at every seat opening.
Then compare the installation to the current rules and the restraint manufacturer’s instructions.
Safety hardware is a system
The cage, seat, harness and driver position all influence one another.
A good harness cannot correct a weak anchor.
A strong cage does not correct a bad shoulder-belt angle.
A certified seat does not correct webbing routed over the wrong part of the body.
The pieces need to work together.
That starts with treating harness geometry as something that gets measured.
Sources: SFI Foundation Seatbelt Installation Guide; FIA Appendix J 2026, Article 253.
Important: Always follow the current sanctioning-body rules plus the seat, harness and head-and-neck-restraint manufacturers’ instructions for the exact equipment being installed.
Photo credit: The Car Spy via Wikimedia Commons, CC BY 2.0.
