A Bad Ground Can Look Like a Bad Sensor, Bad ECU, Bad Alternator and Bad Day
A bad ground can make a perfectly good sensor look broken.
It can make the ECU look broken. It can make the alternator look weak. It can make the starter drag. It can put noise into crank and cam signals and send everybody down a diagnostic rabbit hole for three hours.
Then somebody cleans one ground lug and half the problems disappear.
Race-car electrical systems deserve better than that.
Ground is not magic zero volts everywhere
Every conductor has resistance.
If current flows through resistance, voltage drops across it.
That means the engine block, chassis, battery cable, braided strap and ground lug can all sit at slightly different electrical potentials under load if the connections and conductors are not doing their job.
The difference may be tiny.
For a starter motor, tiny might not matter until it gets bigger.
For a sensor that the ECU is reading in tenths or hundredths of a volt, tiny can absolutely matter.
Sensor ground and chassis ground are not the same job
Link’s ECU manuals are blunt about this.
The sensor-ground pin is for external sensors that are isolated from chassis ground. Link specifically warns not to connect that sensor-ground pin to chassis ground because it can create ground loops and introduce unnecessary interference.
That is the kind of sentence worth reading twice.
If the ECU expects a sensor’s return voltage to come back through its dedicated sensor-ground network, bolting that return to the chassis somewhere else can make the sensor reference move relative to what the ECU thinks is zero.
Now the data can lie.
High-current grounds need their own path
Starter motor. Alternator. Electric power steering. Big fans. Pumps.
These circuits move real current.
Do not make their return path share some tiny incidental sheet-metal connection and then wonder why the voltage falls when the fan comes on.
The battery, engine block and chassis need a deliberate high-current bonding strategy appropriate for the vehicle.
The exact cable size and arrangement depend on the system. The principle does not.
High current needs a low-resistance return path.
Paint is an insulator
This one catches beautiful race cars all the time.
The chassis gets painted or powder coated. Somebody bolts a ground lug on top of the coating. The star washer scratches through enough that the meter looks okay with no load.
Then the real current arrives.
Ground connections need clean conductive contact where the design calls for chassis bonding, then corrosion protection after the electrical connection is made.
Do not confuse “the bolt is tight” with “the electrical connection is good.”
Voltage-drop testing beats guessing
Resistance measurements on a dead circuit can miss a bad connection that only becomes obvious under load.
Voltage-drop testing looks at what happens while current is actually flowing.
Put the circuit under the condition that creates the problem. Crank the engine. Turn on the pump. Run the fan. Then measure voltage from one end of the suspected return path to the other.
If the meter shows a meaningful voltage difference across a cable or connection that is supposed to be a low-resistance path, the voltage is being lost there.
That is much more useful than replacing the alternator because the dash voltage looked low.
Ground loops are why random sensor grounds can make data noisy
If a sensor can return current through two different paths, those paths can sit at slightly different voltage potentials.
Now the measurement includes some of the difference between the ground paths.
That is one reason ECU manufacturers separate sensor ground from power ground in the first place.
Use the ECU manufacturer’s wiring instructions. Do not “improve” the design by tying every black wire in the car to one giant chassis stud unless the system was actually designed that way.
The engine needs a flexible bond because the engine moves
The engine is not welded to the chassis.
It moves in the mounts.

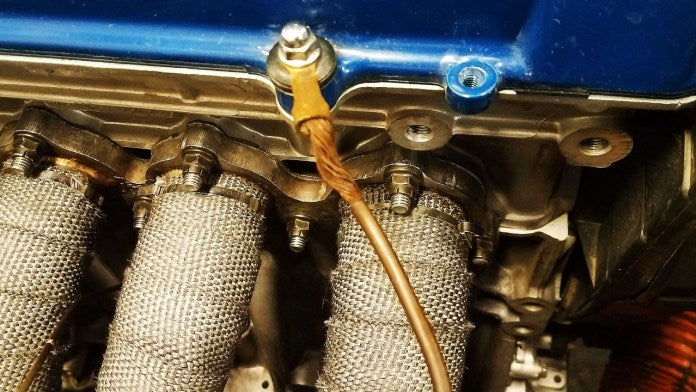

A braided or flexible ground strap lets the engine and chassis stay electrically bonded without asking a rigid conductor or random mechanical component to carry that motion.
That strap also needs to survive heat, oil, vibration and the actual engine movement.
Route it like a real component.
The alternator can only charge what it can reach
If the alternator case is grounded through the engine and the engine-to-battery negative path is poor, the charging system can test differently depending on where you put the meter leads.
That is not the alternator being haunted.
It is the circuit.
Measure at the alternator. Measure at the battery. Measure the drop across the positive and negative paths while the system is loaded.
The difference tells you where the energy is going.
ECU resets under load are a giant clue
If the ECU resets when the fan turns on, the power steering hits peak load or the starter engages, stop blaming software first.
Look at power and ground.
Log ECU supply voltage if the system supports it. Check the main relay, feed, battery connection and ground return. Check whether a high-current device is sharing a connection that should never have been shared.
Intermittent resets are often wiring telling you it is done being ignored.
Do not stack twenty ring terminals on one dirty stud
A common ground point can be useful when it is designed properly.
It becomes a problem when every new circuit gets added to the same bolt with another ring terminal, another washer and another chance for poor contact.
Use proper bus bars, ground studs and distribution hardware where the system needs them.
Keep critical sensor returns in the ECU’s intended network.
Document where things go.
A good ground plan makes diagnostics boring
That is the goal.
The starter cranks the same hot or cold. The ECU voltage stays stable. The sensors read cleanly. The alternator voltage at the battery matches what the charging system is actually producing within a sensible drop. Turning on a fan does not move the oil-pressure reading.
When a sensor fails, it is actually the sensor.
That is what good wiring is supposed to feel like.
Sources: Link ECU wiring guidance on sensor grounds and avoiding chassis-ground loops; Link ECU expansion wiring and sensor-ground guidance; NASA Speed News race-car wiring and grounding example.
