If It Threads Together, That Doesn’t Mean It Seals: 37° AN/JIC vs 45° SAE
One of the easiest ways to build a leak into a race car is to decide two fittings are compatible because the nut seems to thread on.
Threads are not the whole connection.
On a flare fitting, the sealing geometry matters. AN and JIC fittings use a 37-degree flare. SAE automotive flare fittings commonly use a 45-degree flare. They are not the same sealing surface, and Parker’s own technical catalog makes the compatibility limit explicit: an SAE 45-degree male is intended to mate with an SAE 45-degree female or a specifically designed dual-seat 37/45-degree female.
That little angle difference is enough to ruin your day.
The flare is the seal
Parker describes JIC 37-degree fittings as metal-to-metal flare connections. The cone and flare surfaces make the seal when assembled correctly.
That means the threads are primarily there to pull the two sealing surfaces together.
If the wrong flare angles are forced together, the contact happens in the wrong place. You can tighten the nut harder and make the joint feel solid while actually damaging the sealing surface.
Then the leak shows up when the system gets hot, sees vibration or finally gets real pressure behind it.
AN and JIC both live at 37 degrees
In motorsport, people use “AN” as a broad shorthand for a whole family of hose ends and adapters. The original AN standard and the industrial JIC family both use the 37-degree flare concept.
That is why a lot of race-car plumbing parts physically resemble industrial hydraulic hardware.
But do not turn that into “everything with a red and blue fitting is the same.”
Materials, pressure ratings, hose compatibility, swivel construction, plating and manufacturing tolerances still matter.
The angle is only one part of choosing the correct component.
SAE 45-degree is a different animal
SAE 45-degree flare connections are common in automotive and other fluid systems. Parker’s catalog identifies the 45-degree flare as its own connection type and says the 45-degree male should mate with a matching 45-degree female unless the female was explicitly manufactured as a dual 37/45-degree seat.
That last part is important.
Some fittings are intentionally built to accept both.
Most random fittings in a drawer are not automatically dual-seat because somebody wants them to be.
Do not identify a fitting by color
Black. Red. Blue. Natural aluminum. Zinc-plated steel. Stainless.
None of that tells you the flare angle.
Look at the fitting specification. Look at the manufacturer part number. Measure when necessary.
If a car has been through three owners and somebody left a drawer full of unlabeled adapters in the trailer, treat them as unidentified until proven otherwise.
Fluid-system guessing is expensive.
The same rule applies to hose ends
A hose end is not just a pretty nut screwed onto braided hose.
The hose and fitting have to be designed to work together. Crimp fittings have specific shell, stem and hose compatibility. Reusable ends have their own assembly requirements.
Parker’s own fitting catalog repeatedly warns that the user is responsible for selecting compatible system components and following the applicable hose and fitting instructions.
Do not mix manufacturers or series because the pieces “look about right” unless the manufacturer specifically supports that combination.
Do not “fix” a flare leak with more torque
If a correctly assembled flare fitting leaks, stop and inspect it.
Look for a damaged cone. Look for a cracked flare. Look for dirt, galling or a burr. Check that the tube is not pulling sideways on the fitting. Verify that the flare angle actually matches.
More wrench is not a diagnostic method.
Over-tightening can deform the flare or fitting and turn a repairable sealing problem into two damaged parts.
Support the line so the fitting is not the bracket
A perfect flare can still fail if the hose or hard line is constantly trying to bend the fitting.
Support hard lines. Give flexible hose enough movement for engine, transmission and suspension motion. Keep the line away from exhaust heat and sharp edges.
The fitting should contain pressure.
It should not also be the only thing holding three feet of hose in position.
Race-car plumbing needs labels
This is one of the cheapest habits in the shop.
Label the hose. Label the spare. Record the dash size and connection type in the build notes.
If the car comes back six months later needing a replacement line, nobody should have to guess whether the bulkhead is -6 AN, a metric adapter, an ORB port or something else entirely.
A documented car is faster to repair.
When in doubt, stop before pressurizing it
Fuel, oil, power steering and brake systems are not where we get creative about whether two parts are “close enough.”
Identify the connection. Verify the sealing method. Use a hose and fitting combination the manufacturer supports. Assemble it correctly. Pressure-test where appropriate before the vehicle goes back on track.
If it threads together but the sealing geometry is wrong, it is not compatible.
It is just a leak that has not happened yet.
Sources: Parker Catalog 3920, JIC 37° and SAE 45° flare technical information; Parker Triple-Lok 37° JIC fitting technical data; Parker 22 Series connection-type reference.

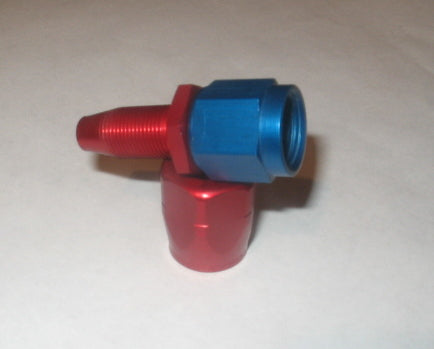

Photo credits: AN fitting image: Scottanon, public domain. Flare diagram: LaurensvanLieshout, CC BY-SA 3.0. Hose-crimp image: Jstapko, CC BY-SA 3.0. All via Wikimedia Commons.
