Race Harnesses: Expiration Dates, Mounting Angles and Why Installation Matters
A race harness can have the right certification label, the right number of points and the right brand name and still be installed badly enough to compromise the entire restraint system. Belts work as a system with the seat, harness bar, mounting hardware, driver position and head-and-neck restraint. The geometry matters.
The other mistake is assuming every harness uses the same replacement schedule. It does not. SFI and FIA systems have different labeling and validity structures, and the sanctioning body running the event can impose its own requirements. The correct answer is always to inspect the actual label and current rules for the car you are building.

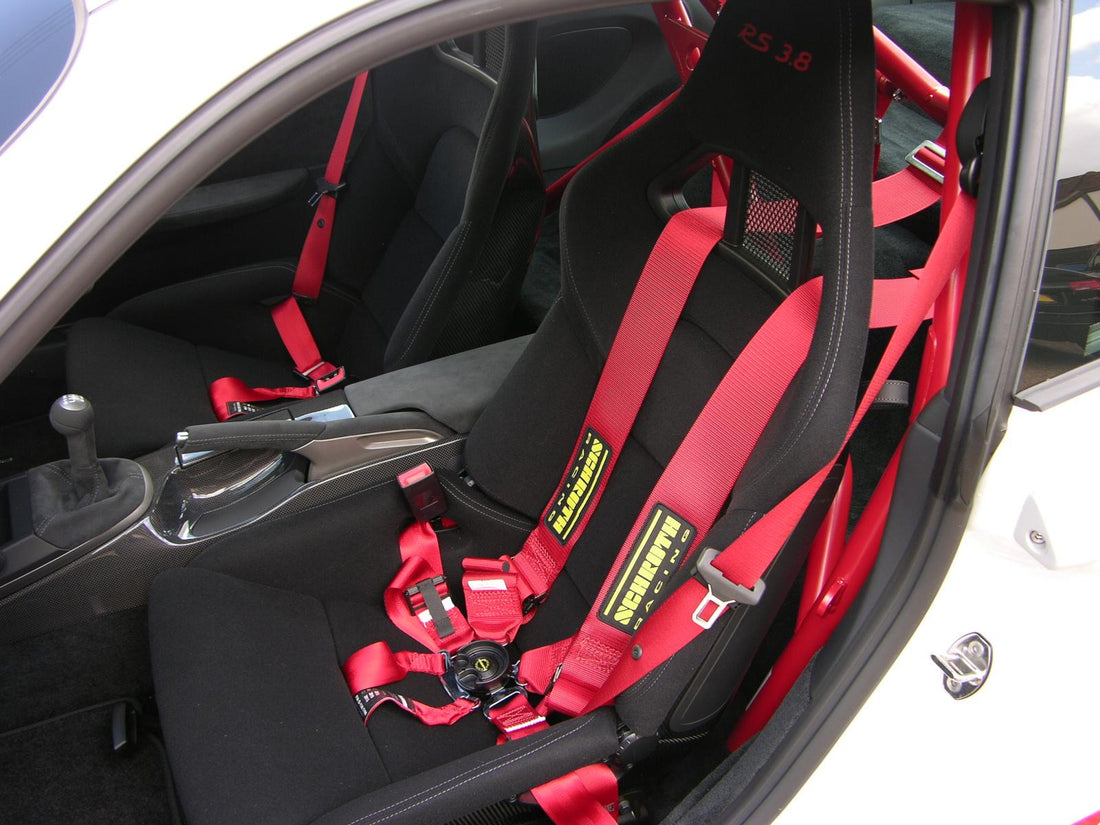

Featured archive image: Schroth six-point harness installed in a Porsche 911 GT3 RS bucket seat. Photo by The Car Spy via Wikimedia Commons, licensed CC BY 2.0. Representative archive media.
SFI belts have a two-year recertification period
The current SFI specification list gives SFI 16.1 Driver Restraint Assemblies and SFI 16.5 Stock Car Driver Restraint Assemblies a two-year recertification period. SFI also emphasizes replacing or rewebbing belts on that schedule in its restraint-system guidance.
That two-year number should not be turned into a universal rule for every harness in motorsport. An FIA-homologated harness uses FIA labeling and product-validity requirements. The FIA's current Technical List 57 identifies harnesses homologated to FIA Standard 8853-2016 and includes validity information for the listed products. As of September 2026, the FIA also maintains a 2026 clarification note for Standard 8853-2016. Check the label, current technical list and the event rules instead of assuming an SFI date applies to an FIA belt or vice versa.
Certification does not fix bad shoulder-belt geometry
For upright seating with a seat-back angle up to 25 degrees, the current SFI Seatbelt Installation Guide specifies a shoulder-belt angle from horizontal of 0 to 20 degrees downward, with 10 degrees downward identified as optimum for the conventional shoulder-belt arrangement covered by the guide.
That means a harness bar mounted far below the driver's shoulders is not “good enough” because the webbing reaches it. The load path should be designed around the seated driver. The guide also calls for a clear passage from the top of the shoulder, or the head-and-neck restraint, back to the harness bar or mounting point without interference from the seat openings.
Belts should also be kept as short as practical to the mounting points. Excessive webbing length gives the system more material to stretch under load and creates more opportunity for routing errors.
The belt should pull straight through the hardware
SFI's restraint guidance stresses that webbing should pull in a straight line against its hardware and should not rub against surfaces that can fray it. That sounds obvious until you inspect race cars where a shoulder belt is sawing against the edge of a seat opening, a lap belt is twisted through an adjuster, or a mounting eye forces the webbing to change direction under load.
Every bend, twist and sharp contact point deserves attention. The hardware needs to be positioned so the belt loads it the way the manufacturer intended. Anchors should be checked for looseness, deformation and corrosion, and the structure carrying the anchor must be appropriate for the load.
A beautiful harness bar welded into a cage is not useful if its position puts the shoulder belts at the wrong angle. Likewise, a correctly positioned belt is not safe if the bracket it is attached to can tear away from thin sheet metal.
Driver fit is part of the installation
The restraint system has to be inspected with the actual driver seated in the actual seat. Shoulder height, torso length, seat position and head-and-neck restraint all affect the routing. A harness installed around one driver's geometry may not remain correct after the seat is moved for another driver.
The lap belt needs to restrain the pelvis, not ride high across the abdomen. The anti-submarine straps need a clean route and appropriate angle for the harness design. Adjusters need to remain accessible enough that the crew can tighten the system correctly without leaving loose webbing or uncomfortable hardware in the wrong place.
Inspect the webbing, not just the date
A belt that is still within its allowed certification period can still be damaged. Look for fraying, cuts, melted or heat-damaged fibers, contamination, UV exposure, damaged stitching and hardware that no longer moves correctly. Any harness involved in a significant crash deserves inspection or replacement according to the manufacturer's instructions and sanctioning-body requirements.
The expiration or recertification date is a minimum administrative check, not permission to ignore condition. A two-month-old belt dragged across a sharp seat opening can be a worse restraint than an older belt that has never been abused, even though only one of those facts appears on the label.
A harness is only as good as the system around it
Current FIA Technical List 57 continues to list harnesses homologated to FIA Standard 8853-2016, while SFI continues to maintain separate 16.1 and 16.5 restraint programs with two-year recertification periods. Those standards give racers a baseline. Installation is what connects that tested product to the driver.
Use the harness manufacturer's instructions and the current rules for the sanctioning body as controlling documents. Set the seat first, position the driver, verify the head-and-neck restraint, then build the harness-bar and anchor geometry around the actual load path. Do not move the driver around a harness installation that was fabricated first.
For more race-car safety and fabrication coverage, continue through the Race Club Safety & Race Technology journal. For seat mounting, harness-bar fabrication, cage work or competition preparation, contact Race Club.
Technical references checked September 25, 2026 against the current SFI Specifications List, SFI Seatbelt Installation Guide, SFI restraint guidance and the FIA homologation/technical-list system for Standard 8853-2016. Always follow the harness manufacturer's instructions and the current rules of the event or sanctioning body.
