Race-Car Master Kill Switch: What It Must Shut Off—and Why the Fire System Stays Alive
A race-car master kill switch is not there simply to disconnect the battery while the car is parked. In an emergency, a driver or responder needs one clearly identified control that actually removes electrical power from the vehicle systems the rulebook requires—without disabling equipment that must remain available after the shutdown.
That distinction is why a switch that “kills the battery” on a simple street car can be inadequate on a competition car with an alternator, ECU, electric pumps, fans, data systems and onboard fire suppression.

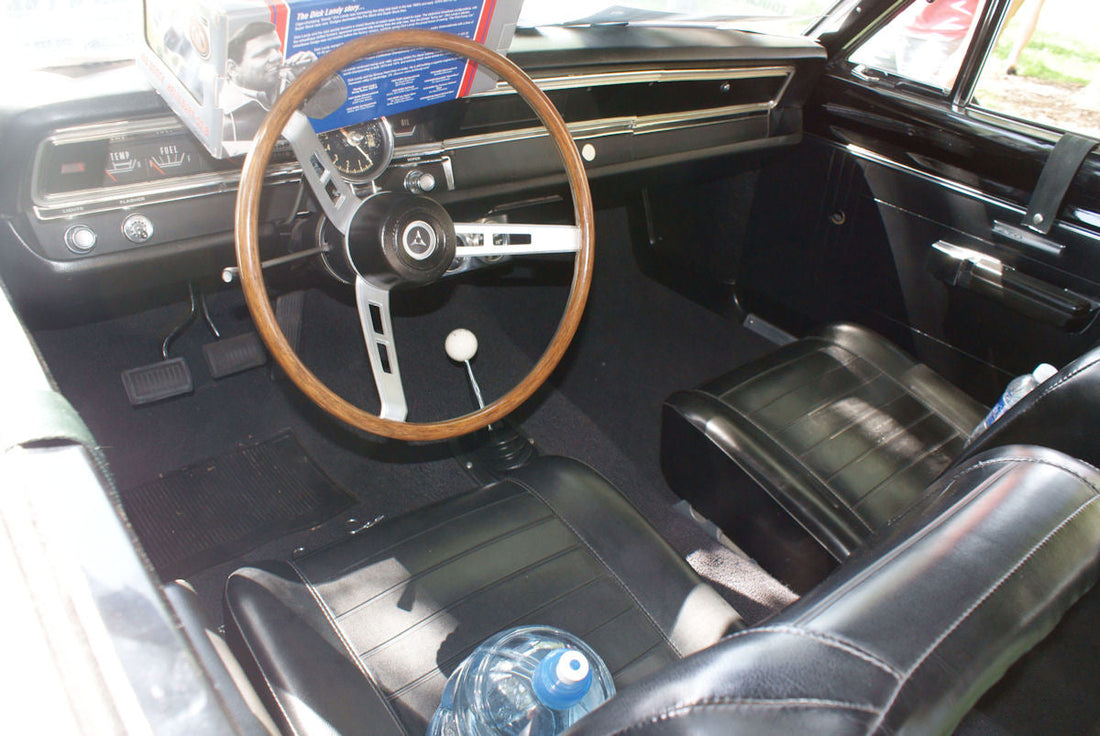

Featured photograph: cockpit of a 1968 Dick Landy racing Dodge Dart. Representative race-car cockpit image, not an example of current SCCA master-switch compliance. Photo by Valder137 / Wikimedia Commons, licensed CC BY 2.0.
The switch has to do more than separate one battery terminal
SCCA’s current Race Experience vehicle requirements state that applicable cars must have a master switch easily accessible by the driver and from outside the car. SCCA requires the switch to be installed directly on either the positive or negative battery cable and says it must cut all electrical circuits except an onboard fire system.
The important phrase is “all electrical circuits.” On a running engine, the alternator can be another power source. A switch arrangement that disconnects the battery but leaves the alternator feeding the ignition or ECU may not actually stop the engine or de-energize the vehicle the way the rule intends.
Do not solve that by copying a wiring diagram from an unrelated car. Alternator type, ECU/PDM architecture, electric power steering, fuel pumps and other loads change the design. Use the switch and electrical-component manufacturer instructions and have the shutdown circuit designed for the actual vehicle.
The fire system is intentionally different
SCCA’s current language specifically says the master switch must not cut an onboard fire system. That makes sense operationally: electrical shutdown and fire suppression solve different problems, and a responder may need the suppression system after the rest of the car has been isolated.
If the car uses an electrically actuated fire system, confirm its power strategy against both the fire-system instructions and the controlling rulebook. Do not assume that wiring everything through the main PDM or master relay is automatically correct just because it produces a clean harness.
The fire system also needs its own inspection, identification and service requirements. Electrical isolation should not quietly defeat the safety equipment the driver expects to work after a shutdown.
Accessibility is part of the safety function
A perfect switch that a corner worker cannot find or reach is a bad emergency control. SCCA calls for access from the driver and outside the vehicle, and its current guidance recommends locations that remain reachable even when the car is not sitting normally.
The switch also needs clear marking. SCCA specifies the international spark symbol in a blue triangle and requires the off position to be clearly indicated. Follow the exact current rulebook for the series you are entering because location and marking language can differ.
Think about the driver while fully restrained. If the internal control is technically inside the cockpit but requires the driver to loosen the harness or lean out of the seat, it is not serving the emergency use case well.
Insulate the high-current hardware
SCCA’s current Race Experience requirements say master-switch terminals must be insulated to prevent shorting. That should be treated as a minimum design principle around any exposed high-current connection.
Route and support the battery cable so vibration, crash movement or routine service cannot easily put the conductor against the chassis. Protect the cable where it passes through panels. Use terminals, cable size, boots and mounting hardware appropriate for the current and environment of the actual vehicle.
The master switch should not become a new ignition source because an exposed stud sits a few millimeters from a grounded panel.
Test the shutdown function, not just the switch movement
After wiring changes, test the master shutdown in the manner permitted by the component manufacturers and shop procedure. The verification question is not “did the red handle move?” It is whether the engine and required circuits actually shut down and whether the fire system remains available as intended.
Then inspect what the shutdown does to the ECU, alternator, PDM and sensitive electronics. Some systems require specific suppression or switching strategies to avoid voltage transients. That is another reason not to improvise a universal schematic.
Record the final architecture so future wiring changes do not accidentally bypass the master circuit. Adding a new pump or accessory directly to the battery months later can defeat a previously correct shutdown design.
Build the kill switch around the rulebook you run
SCCA Race Experience is one current example, not a universal standard for every sanctioning body. FIA-governed cars, drag racing, drifting and off-road competition can use different requirements. Start with the current rulebook and technical documents for the series, then design the electrical architecture to satisfy them.
A master kill switch is successful when one deliberate action puts the car into the safe electrical state the rulebook intended—not when the dashboard simply goes dark.
