Race-Car Wiring That Survives: DR-25, Sealed Connectors and Serviceable Harness Design
A motorsport wiring harness should disappear while the car is working and become obvious the moment something fails. That is the standard: protect the circuits from heat, vibration, fluids and abrasion, but make the system understandable enough that a crew can diagnose it under pressure.
DR-25, sealed connectors and professional-looking labels can all be part of a good race-car wiring system. None of them compensate for poor circuit design, incorrect wire sizing, bad termination or a harness routed through a failure point.

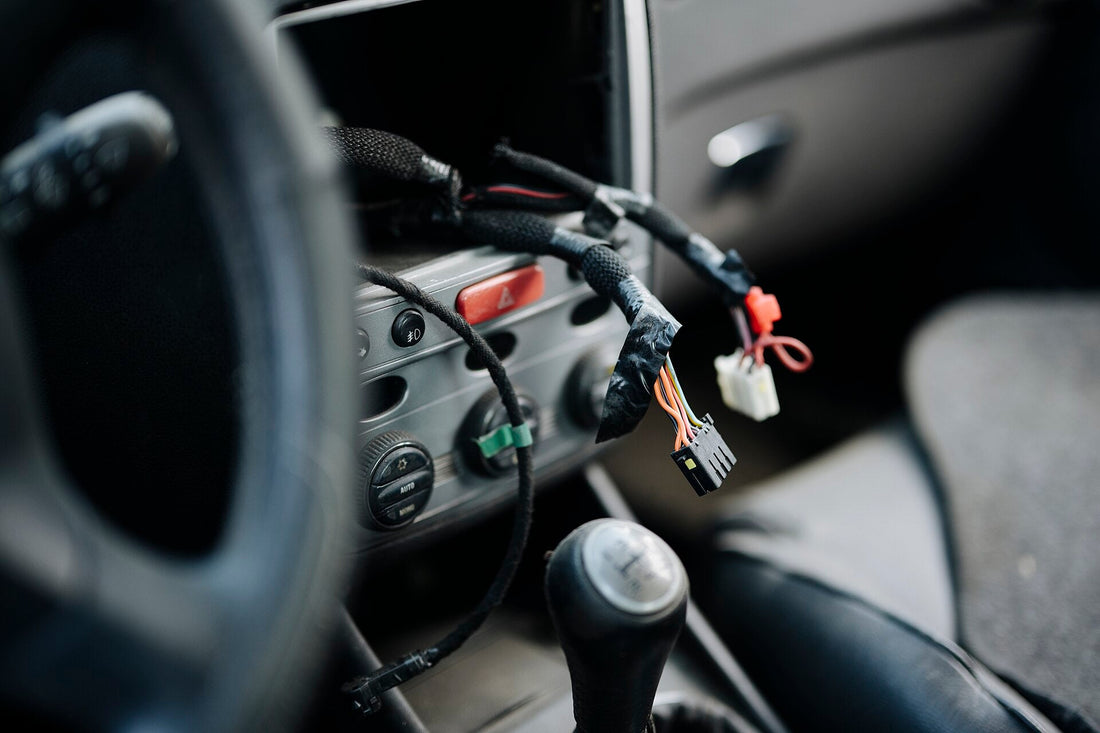

Featured photograph: representative vehicle wiring and controls during service; not a Race Club harness or certification example. Photo by Shixart1985 / Wikimedia Commons, licensed CC BY 2.0.
Start with the electrical architecture, not the sleeving
Before choosing loom material, define the loads and the information flow. Starter, fuel pumps, fans, lighting and other high-current devices are different electrical problems from crank sensors, wheel-speed inputs, CAN communication and low-level analog sensors. They should be designed around the requirements of the actual devices, ECU, PDM or relay/fuse architecture in the car.
Determine expected current, conductor size, protection strategy, connector/contact capability and grounding from manufacturer data and proper electrical calculations. Do not copy a fuse size or wire gauge from another build simply because the components look similar. Circuit protection is there to protect the wiring and system; its value belongs to the actual circuit.
DR-25 protects the harness, but it is not the harness
TE Connectivity describes RAYCHEM DR-25 as flexible, chemical- and abrasion-resistant heat-shrink harness tubing designed for high-temperature fluid resistance. TE lists an operating temperature range of -75°C to 150°C and resistance to fuels, hydraulic fluids and lubricating oils.
Those properties explain why DR-25 is common in serious motorsport wiring. It provides a durable outer layer and helps organize branches. It does not make the conductors inside immune to exhaust heat, poor strain relief or a harness stretched tightly between two vibrating components.
Route the harness away from sharp edges and moving suspension or steering parts. Support it so connector bodies are not carrying the harness weight. Use appropriate boots, transitions and strain relief where the design calls for them. If a branch has to cross a heat source, solve the heat problem rather than assuming more sleeve makes it disappear.
Sealed connectors still have electrical limits
TE’s DEUTSCH DTM connector family is environmentally sealed and aimed at lower-amperage multi-pin connections. TE lists size 20 contacts at 7.5 amps and specifies that proper parts, procedures and tooling must be used. That number does not mean every DTM cavity should automatically be loaded to 7.5 amps in every race-car environment.
Current capacity is a system decision involving the correct contact, conductor, ambient temperature, duty cycle, number of loaded circuits, voltage drop and manufacturer guidance. Higher-current loads may require a different connector family or architecture. The right answer is not to force a convenient connector into the wrong job.
The same applies to sealing. A sealed connector cannot protect a wire that has chafed through six inches away. It also cannot fix a poorly crimped terminal or a contact that was installed with the wrong tooling.
Grounding deserves its own design
Many electrical problems blamed on the ECU are voltage or reference problems somewhere else. Plan power and ground distribution deliberately. High-current devices can create voltage drop and electrical noise. Sensitive sensors rely on stable references. CAN networks require the topology and termination specified by the equipment manufacturer.
Document where the main grounds are, what they serve and how the ECU or PDM manufacturer expects sensor grounds to be handled. Clean metal, correct termination and mechanical security matter. So does being able to inspect the connection later.
Build diagnosis into the car
Label connectors and major branches. Keep a wiring diagram that matches the current car, not the version from three rewires ago. Record fuse and relay locations, sensor part numbers and connector information. If a PDM or ECU supports meaningful logging and diagnostics, configure it intentionally instead of filling the screen with channels nobody understands.
Leave enough service access to disconnect modules without pulling against the harness. Put test points and connectors where a technician can reach them safely. A race car does not need to look like an OEM production harness, but it should have the same basic discipline: circuits have identities, protection has a reason and repairs do not depend on memory.
Inspect the wiring like a mechanical system
At routine race prep, look for abrasion, loose supports, softened or discolored sleeve near heat, contamination inside connectors, backed-out contacts and harness movement around the engine or suspension. Pay attention to anything that changed after a drivetrain, exhaust or cooling modification. A new bracket can become an electrical failure point if the harness now touches it.
Professional motorsport wiring is not defined by black heat shrink. It is defined by electrical decisions that remain safe, diagnosable and repeatable when the car is hot, vibrating and being serviced between sessions.
