Race Fire Systems: Check the Bottle, the Controls and the Pre-Grid Routine

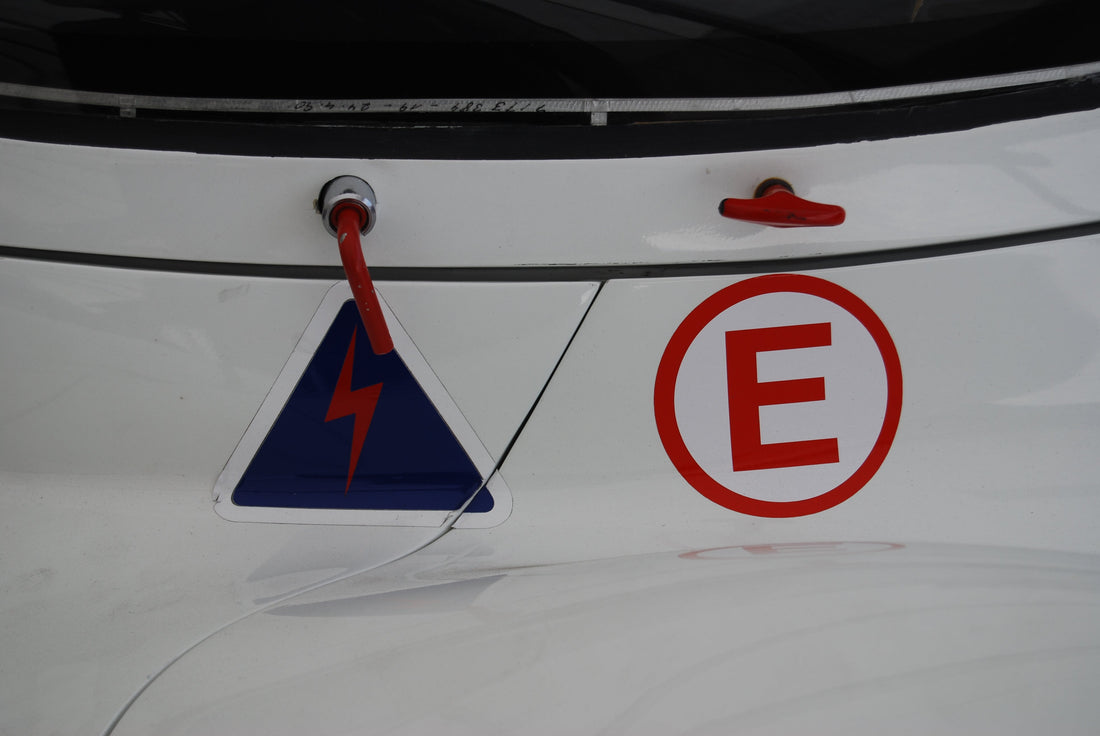

Feature photograph: External electrical-cutoff and extinguisher controls on a Porsche race car, photographed in 2011. Archival illustration of control identification, not an installation approval. Photo: Bill Abbott / Wikimedia Commons, CC BY-SA 2.0. Unmodified.

A fire-system check should end with a crew member knowing what is fitted, what condition it is in and how it becomes ready for a session. A bottle behind the seat and an E sticker on the bodywork are only the visible parts. The practical job is to connect the documentation, the installed hardware and the driver’s pre-grid routine.

Identify the complete system first

Start with the bottle’s exact model and homologation identification, then find its installation and operating manual. The FIA’s September 2026 Technical List 52 records more than brand names: entries specify extinguishing medium, cockpit-volume range, fire class and bottle count. Those columns explain why a familiar logo or a similar-looking cylinder cannot establish suitability on its own.

There is also an important date distinction. The list’s homologation-end column identifies the last permitted manufacturing date. It is not a substitute for the individual product’s labeling, service record or the rules applying to your entry. Match the actual hardware to its documentation before deciding that an old date means replacement, or that a later date means the car is ready.

Read the bottle, then follow the delivery path

Lifeline’s published care bulletin, TB001, separates the readiness checks by system design. Stored-pressure systems have a gauge check; other designs use the specified indicator or weight check. A gauge reading is therefore one check on a particular system, rather than a universal test of the whole installation.

The same bulletin calls for checking cylinder condition, pipework and fittings, nozzle obstruction, and either pull-cord operation or electrical battery power and circuit continuity. That is a useful way to organize a walk-around: begin at the cylinder and work outward. Damage, an obstructed nozzle or an unresolved electrical fault deserves attention even when the gauge appears normal.

Keep inspection separate from servicing. Lifeline directs servicing to its own or approved agents. Do not improvise a live discharge test, open a pressurized cylinder or substitute cleaning and test procedures from a different system. Use the instructions for the equipment actually installed and resolve uncertainty with its manufacturer or authorized service provider.

Controls need a clear route to the driver

The Fogmaker manual for EX.047.18 and EX.048.18 requires its mechanical handle to be visible and easy to reach, with identification close to the actuator. It also calls for readable cylinder gauges and service labels and unobstructed nozzles. Those requirements belong to those systems; the broader lesson is to keep access in the installation review.

A relocated seat, new switch panel or additional cockpit equipment should trigger another look at the controls and their identification. Can the driver identify the fire control in the actual seated position? Can an outside responder find the external control? Walk through those questions with the car stationary and the system made safe according to its manual, without pulling a live handle or pressing a live discharge button.

Fogmaker specifies certified personnel for installation or inspection and warns against removing valves from pressurized cylinders. A photograph or paddock checklist cannot replace that work.

Make arming a deliberate step

Installed and armed are separate states. A concrete example appears in the February 6 revision of the 2026 Porsche Carrera Cup North America technical regulations. Section 1.11.6 requires the original Porsche system to be armed, with its red LED illuminated, during travel to pit lane for each session. It stays on until the car returns to the team area or parc fermé, and the unit must be within its service date.

That is a series-specific procedure for the specified Cup car. Do not transfer its indicator color or switching sequence to another installation. Take the useful organizational point instead: the checklist needs a named readiness step, performed at the point required by your own equipment instructions and current event rules. A completed installation months ago does not answer whether the system is in its correct state today.

Leave the next person a usable record

Keep the exact manual, system identification, service documentation and any unresolved inspection findings together. Assign who checks readiness before the car leaves and who follows the prescribed safe-state procedure after it returns. If something is unclear, settle it before the session. A dependable routine makes the condition of the fire system explicit instead of leaving each crew member to assume somebody else checked.

Educational preparation guidance only. The applicable sanctioning-body rules, event requirements and the installed system manufacturer’s current instructions govern. Archive photographs illustrate the discussion and are not compliance endorsements.
