Race Car Roll Cage Inspection: What to Check Before the Next Event
A race-car roll cage can look finished while still hiding problems that deserve attention before the next event. Paint, padding and interior panels make a car presentable, but they can also obscure the areas that tech inspectors and fabricators need to evaluate. A useful cage inspection starts with access, good lighting and a deliberate path around every joint.
Start with fit-up, not the appearance of the bead
A clean-looking weld is not proof of a good joint. The tubes must meet with proper fit-up, the joint must be accessible enough to weld completely, and the surrounding structure must be capable of carrying the load. Look for gaps that were bridged with filler, incomplete weld coverage around the back of a tube and joints placed where the torch could not maintain a consistent angle.
Pay special attention to the main hoop, A-pillar bars, roof junctions, door-bar nodes and any tube that terminates at a mounting plate. These are load-path intersections, not decorative details.
Inspect the heat-affected area and mounting structure
Cracking does not always begin in the center of a weld. Clean the area and inspect the edge of the bead, the adjacent tube and the mounting plate. Surface rust, paint lifting, distortion or a fine line near a toe of the weld can justify a closer inspection by a qualified fabricator.
At the floor, confirm that plates sit against sound structure and have not begun to pull, buckle or separate. If the cage is tied into a rocker, sill or reinforced node, inspect the surrounding seams as well. A strong tube cannot compensate for a weak attachment.
Do not let padding hide the inspection
Padding is essential where the driver's helmet or body can contact the cage, but it should be removable for service. Pull it back periodically. Check for corrosion, moisture, chafed harness webbing and sharp hardware beneath the padding. Reinstall suitable motorsport padding after the inspection and secure it so it cannot rotate away from the contact zone.
Use the rulebook and a qualified inspector
Cage requirements vary by sanctioning body, class and vehicle. Tube size, material, plate dimensions, door-bar design and permitted attachments are rule-specific. The car's current rulebook is the authority, and any questionable joint should be evaluated by an experienced cage builder or scrutineer before the car returns to competition.
For builders starting with a proven platform-specific structure, Race Club carries motorsport fabrication components including the CageKits S14 FD-spec roll cage kit. A kit can improve consistency and fit, but final preparation, welding and installation still determine the quality of the completed safety structure.
Make cage inspection part of the service schedule, especially after a crash, hard curb strike, rollover, chassis repair or any event that may have moved the shell. Safety hardware deserves the same repeatable inspection discipline as brakes, steering and wheel fasteners.

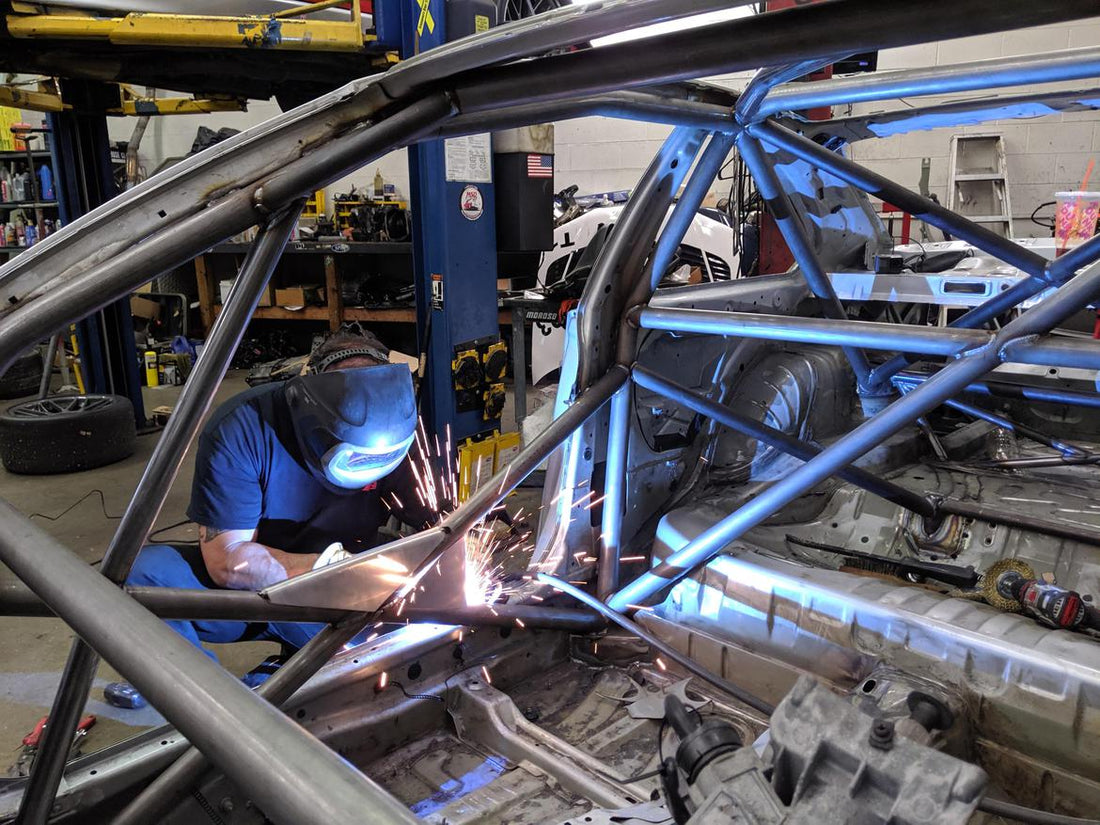

Feature image: Grassroots Motorsports / Hi-Speed Motorsports. Inline shop photography: Race Club.
