Fuel Cell Mounting Is Chassis Work: Build the Cradle Before Routing the Lines

A fuel cell is not safe because it carries a racing label. The installation has to control the mass of the fuel, protect the container and keep every connection serviceable through vibration, heat and impact.

Start with the load path

A full fuel cell can place a substantial moving load into the rear structure. The cradle should transfer that load into reinforced chassis points instead of concentrating it in thin sheet metal. Mounting tabs, fasteners and backing areas need enough section and edge distance to resist pull-through. The enclosure and surrounding structure also need to keep sharp edges and moving components away from the cell.

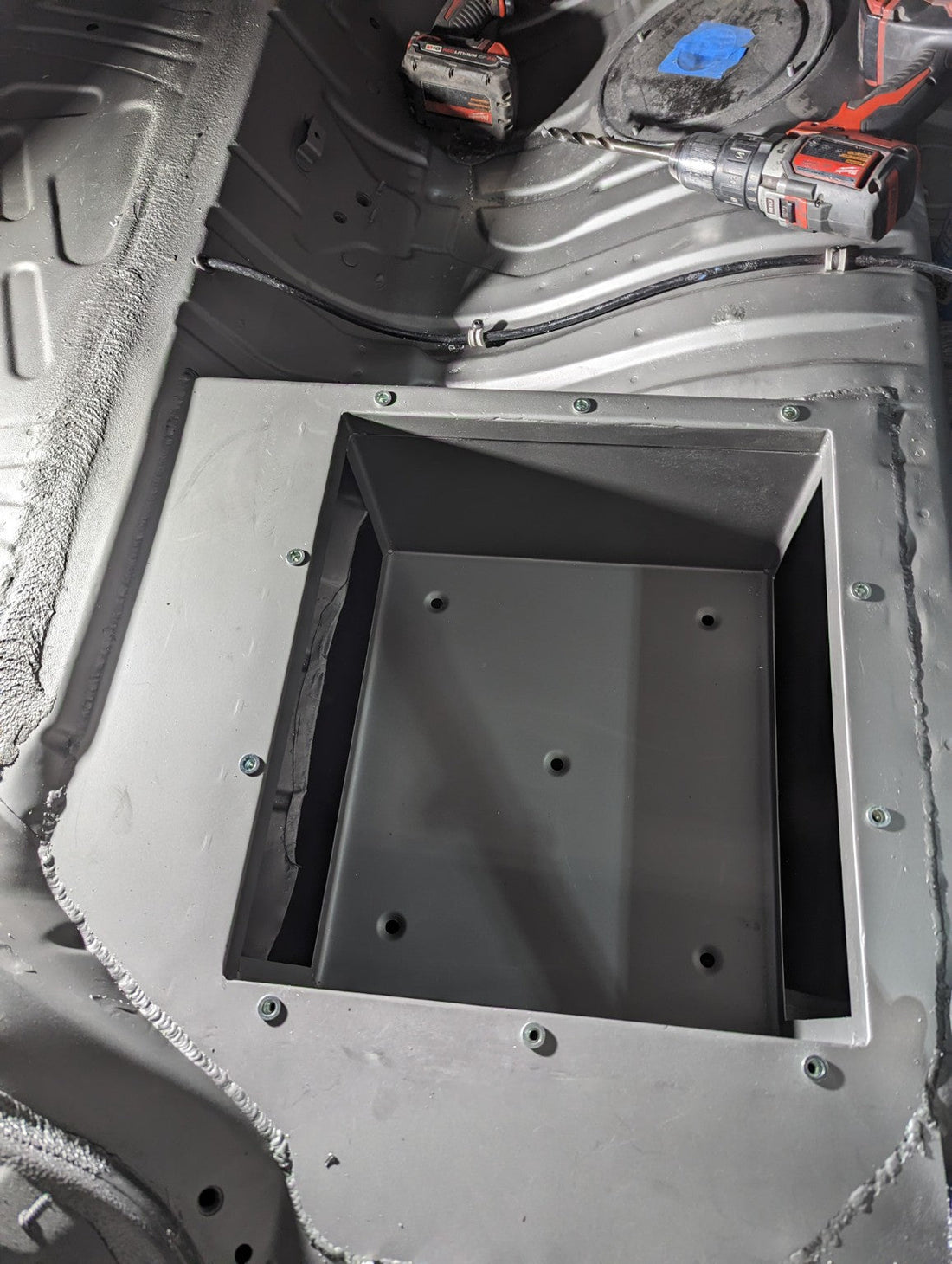

The recessed cradle shown here was treated as chassis fabrication. Its depth and perimeter were established before the final plumbing layout so the cell could sit securely without forcing hose ends into awkward angles.

Plan service access before plumbing

Pumps, filters, electrical bulkheads, rollover protection, vents and filler hardware all require inspection. If the top plate can only be reached after removing half the rear interior, routine checks are less likely to happen. Leave working room around fittings and make sure tools can reach the fasteners without loading a hose or wiring connector.

Vent routing deserves the same attention. A vent line should rise appropriately, avoid heat and abrasion, and terminate where fuel vapor or overflow cannot enter the cockpit. Use components intended for the fuel in the system, and support hoses so their weight is not carried by the fittings.

Verify the complete installation

• Confirm the cradle and retention system cannot shift under load.
• Check the cell, filler and vent against the rulebook for the car’s sanctioning body.
• Inspect every bulkhead, hose end and electrical pass-through for clearance.
• Pressure-test the plumbing at an appropriate low pressure before adding fuel.
• Reinspect after the first heat cycle and again after the first event.

Fuel-system safety comes from the whole assembly. A quality cell is the foundation; the cradle, enclosure, routing and inspection plan are what make it work in the car.
