Race-Car Cooling Lines Need Structure: Route, Support and Service Them Like Hardware

A race-car cooling system is not finished when the hose reaches the fitting. It is finished when every section has a purpose, every bend has clearance, and the system can be inspected or serviced without dismantling half the car.

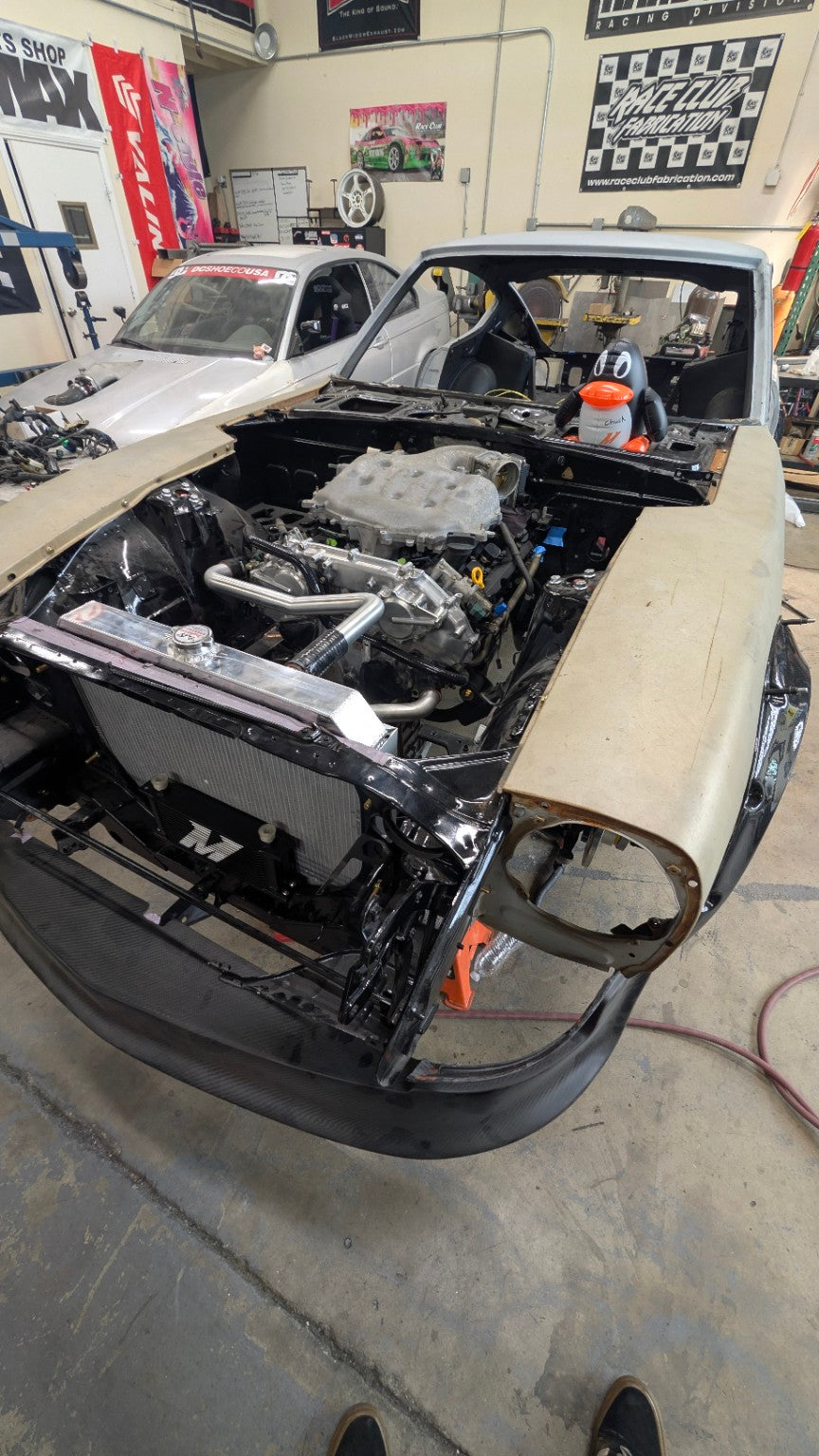

The VQ-powered Datsun 280Z in the Race Club shop makes that lesson visible. Its cooling layout combines fabricated aluminum hardline with flexible connections so the system can move with the engine, clear the accessories, and remain accessible at the front of the chassis.

The hardline is treated as part of the vehicle package—not as an afterthought between the engine and radiator.

Start with the service path

Before cutting tube, identify everything that will need to come back out: belts, alternator, radiator, fans, intake plumbing, front accessories and the engine itself. A line that looks clean with the car apart can become a trap once the rest of the package is installed.

The best route normally follows three priorities:

• Clearance: Keep the line away from belts, pulleys, steering parts, suspension travel and sharp sheet-metal edges.
• Support: Prevent a long span from becoming a vibrating lever on the radiator or engine fitting.
• Access: Leave room to reach clamps and disconnect flexible sections without damaging the tube.

Use hardline and hose for different jobs

Fabricated aluminum tube controls the path and keeps long runs compact. Flexible hose belongs where the powertrain moves relative to the chassis, where assembly requires compliance, and where a removable joint makes service easier. Neither material should be asked to do the other’s job.

That means the transition points matter. A hose should not be forced into a tight bend directly off a fitting, and a hardline should not carry engine movement into a fixed radiator neck. The system needs enough compliance to protect its connections without allowing the hose to rub or collapse.

Support is part of the pressure system

Clamps and separators are not decorative. They control motion, maintain clearance and stop adjacent hoses from sawing against each other. On flexible AN plumbing, purpose-made ColorFittings AN hose separators can help organize parallel runs. For sections that require braided flexible line, ColorFittings standard braided AN hose is one option available through Race Club. Always match hose construction, fitting type, temperature and pressure rating to the actual fluid system.

Inspect the installation as a system

Before the first heat cycle, check every joint with the car assembled. Verify that nothing changes when the engine rocks, the steering moves lock to lock, or the chassis is raised at normal service points. Pressure-test the system, bring it to temperature, let it cool completely, and inspect it again.

• Look for fresh witness marks at brackets and bulkheads.
• Confirm that clamps still hold the intended gap.
• Check flexible connections for twist and excessive preload.
• Make sure the radiator cap, bleed point and drain remain accessible.
• Recheck clamps after the first complete heat cycle.

The goal is boring reliability

Good cooling plumbing disappears during a race weekend. It does not rub, leak, trap air or block the next repair. The cleanest installation is the one that controls the route, manages movement and gives the crew a clear way to inspect every critical connection.

Building a competition cooling or fluid system? Browse Race Club’s ColorFittings selection, then verify sizing and application requirements before ordering.
