Backing Plates for Race-Car Safety Hardware: Build the Load Path
A safety component can be properly rated and still be poorly installed. The missing link is often the structure behind the mount. Thin sheet metal may hold a bolt during assembly, but it can deform, tear or fatigue when the part is loaded repeatedly.
The mount must spread load

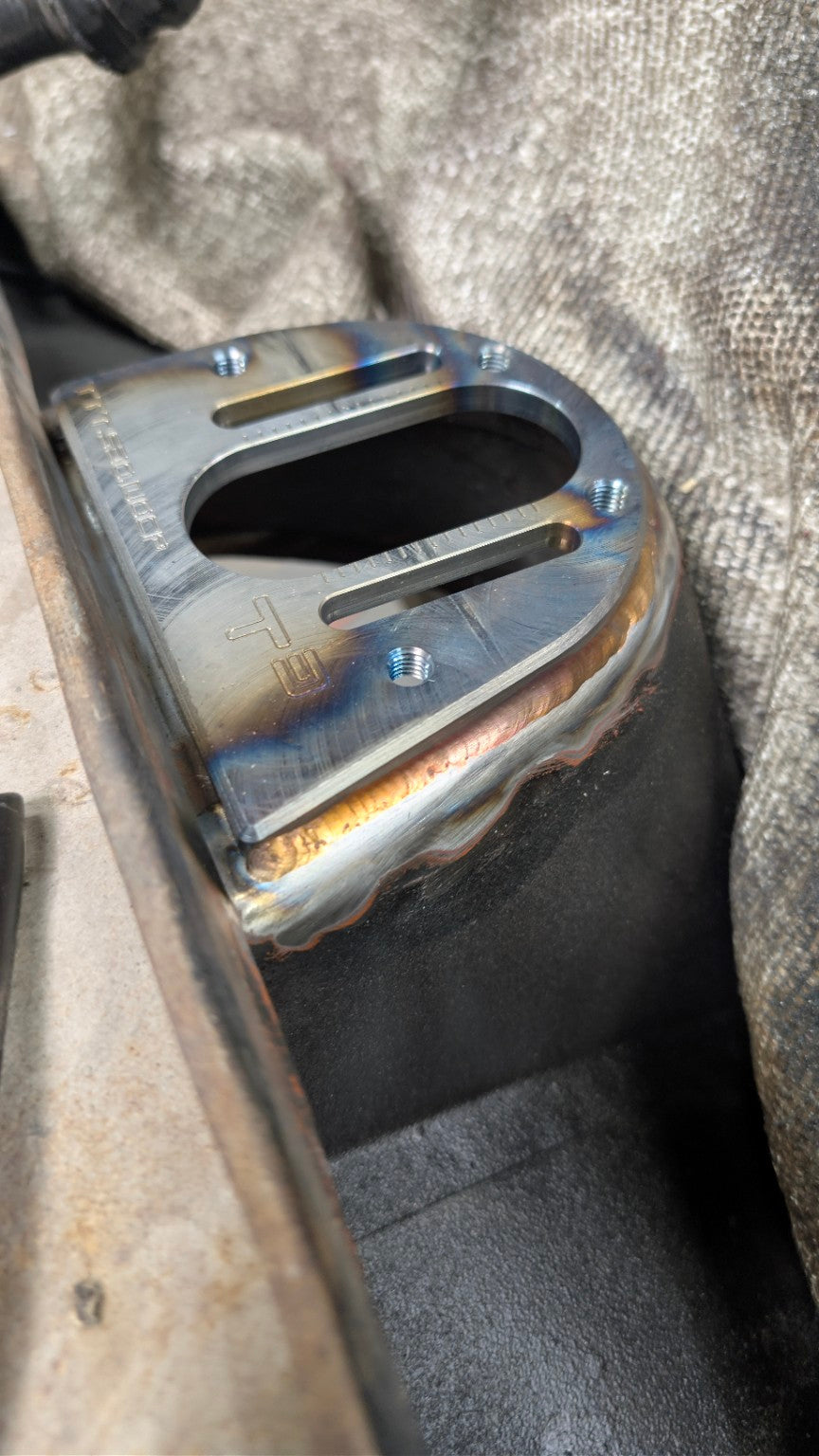

A backing plate turns a concentrated bolt load into a larger structural footprint. Plate thickness matters, but size, shape and placement matter just as much. A small, thick washer can still pull through a flexible panel. A properly sized plate distributes the load across stronger material and reduces local bending around the fastener.
Look beyond the top surface. The installer should know what sits behind the panel, where seams and flanges run, and whether the load can travel into a rail, cage tube, reinforced floor section or other substantial structure.
Fastener spacing and edge distance
Holes placed too close to an edge invite cracking and tear-out. Closely grouped fasteners can also behave like one oversized hole instead of sharing the load. Leave enough material around every hole, deburr both sides, and keep the plate flat against the structure. If the mounting surface is curved, form the plate to match rather than pulling it into shape with bolt torque.
Retention is not the same as structure
Quick-release clamps and roll-bar mounts are useful when installed on the structure they were designed for. For example, the NRG fire-extinguisher roll-bar mount provides accessible retention, but the cage tube, clamp fit, extinguisher size and release path still have to be evaluated as a complete system.
Make inspection possible
A good safety installation can be inspected without dismantling half the car. Keep fastener heads, locking features and the surrounding material visible. Paint or seal bare steel after fabrication, then check for movement, fretting, elongated holes, cracked coating and loose hardware during routine nut-and-bolt inspections.
Always confirm the current rulebook for the sanctioning body and class. When safety hardware is involved, the question is not only whether the part fits—it is whether the full load path remains secure when the car is loaded in the way the rule intends.
