Wheel Hop Is the Driveline Fighting Itself: What Solid Diff Mounts Actually Change
Wheel hop gets blamed on tires, shocks, bushings, the diff, the alignment and whatever part somebody happens to be selling that week.
The annoying answer is that wheel hop can involve all of them.
It is an oscillation. The tire loads, something in the suspension or driveline deflects, grip changes, the stored energy releases, the tire loads again, and the whole thing repeats fast enough that the rear of the car feels like it is trying to leave the chassis.
Solid differential and subframe mounts do not magically create traction. What they do is remove some of the movement that lets the driveline and rear geometry wind up under torque.
The differential is reacting to the same torque it sends to the axles
When the ring gear and pinion transfer torque, the differential housing wants to react in the opposite direction.
Rubber differential mounts let some of that movement happen. That is good for a street car because it isolates noise and shock. On a competition car, the movement can make throttle response feel delayed and can let the pinion angle change under load.

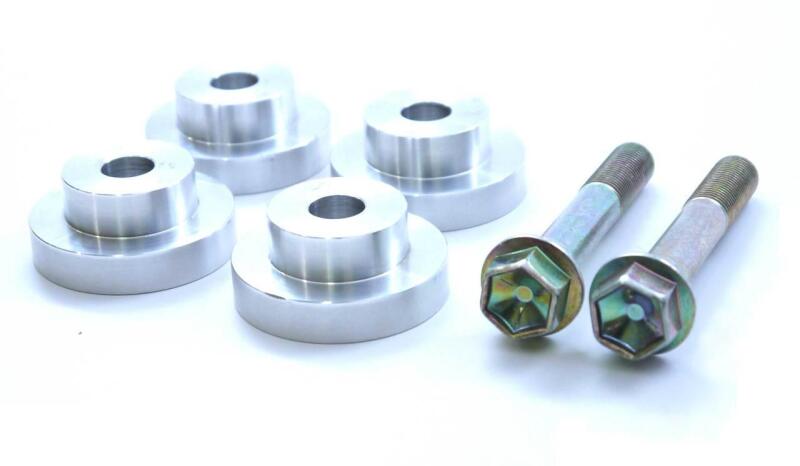

SPL describes its solid differential mounts for the S13, S14, 350Z and other Nissan applications as a way to hold the differential solidly to the subframe and reduce wheel hop.
That is the mechanical point: remove the rubber spring between the differential and the structure carrying it.
The subframe can be another spring
If the differential is solidly mounted inside a subframe that is still moving around on soft bushings, the geometry is not actually solid.
The rear toe links, control arms and differential are all attached to that subframe. If the whole assembly shifts relative to the chassis under lateral load and torque, the rear alignment can move with it.
SPL’s solid subframe bushings are intended to remove that compliance on S-chassis and Skyline applications.
Again, that does not mean every drift car needs solid everything. It means the team should understand where the movement is coming from before chasing alignment numbers around.
Why wheel hop can get better
Imagine the tire starts to slip, then hooks.
With soft mounts, the differential and subframe can twist or move. That movement stores energy in the bushings. When the tire unloads, the bushings push the assembly back. The tire can hook again and repeat the cycle.
Removing compliance takes one spring out of that system.
It may not eliminate wheel hop if the tire, shock, spring, axle, alignment or surface is still feeding the oscillation, but it can make the drivetrain response much more direct.
Direct feels better right up until the chassis has to absorb it
This is the trade nobody should hide.
Rubber bushings isolate load.
Solid aluminum does not.
More noise, vibration and harshness go into the chassis. Gear noise becomes more obvious. Impact load from clutch kicks and tire shock has less rubber between the drivetrain and the structure.
On an old chassis with cracked mounting points, thin sheet metal or questionable welds, solid mounts can expose problems that the rubber was quietly cushioning.
Inspect the structure before calling solid mounts an upgrade.
Pinion angle matters when the differential moves
A driveshaft does not care that the alignment sheet is perfect.
If the differential rotates under torque, the operating angle at the driveshaft and CVs changes.
That can create vibration, change joint loading and make a drivetrain feel different on and off throttle.
When a car has a custom engine, transmission or differential mount, measure the driveline angles under the configuration the car actually runs. If the differential is on soft mounts, remember those angles may not stay exactly where they were measured once the car is loaded.
Solid mounts make bad alignment easier to feel too
Compliance can hide things.
If the rear toe is wrong but the bushings are moving around, the driver may describe the car as vague.
Make everything solid and the car may suddenly feel very precise — precisely wrong.
That is why solid mounting should be followed by a real alignment and a recheck of the suspension through travel.
Do not chase wheel hop with one part
If the car hops, inspect the whole rear system.
Mounts. Subframe. Toe. Camber. Tire pressure. Shock condition. Spring rate. Axles. Differential backlash. Wheel bearings. Tire contact.
Look for movement and witness marks.
Video the rear suspension if you can do it safely. The part that is moving may be obvious once you stop guessing.
The goal is repeatability
That is the real reason solid mounts belong on competition cars.
The differential should stay where the team put it. The subframe should stay where the team aligned it. The rear geometry should not change because the throttle came in hard.
Less movement means fewer variables.
Just remember that every variable you remove from the bushing gets handed to the chassis.
Sources: SPL Parts S13 Solid Differential Mount Bushings; SPL Parts 350Z/G35 Solid Differential Mount Bushings; SPL Parts solid subframe bushing documentation.
Photo credit: SPL Parts product media through the Race Club catalog.
