Hydraulic Handbrakes in Drift Cars: Separate vs. Pass-Through Brake Circuits

A hydraulic handbrake is one of the most recognizable pieces inside a drift car, but the lever is the easy part. The important decision is what happens hydraulically after the driver pulls it.

For a competition build, a hydraulic e-brake can be arranged as a separate rear-brake circuit or as a pass-through system that shares the rear calipers with the primary brake system. Those layouts have different plumbing, service and failure implications, and the rulebook needs to be part of the decision before lines are made.

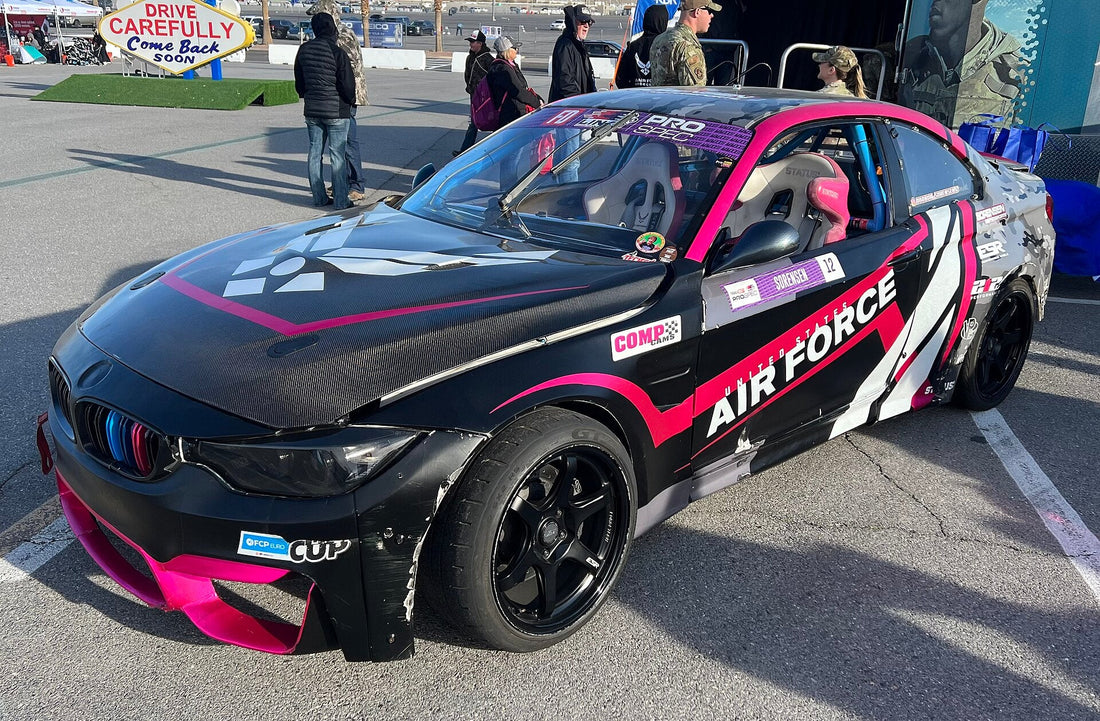

Featured photograph: Amanda Sorenson's LS3 BMW M4 Formula Drift car at Las Vegas Motor Speedway in 2023. Photo by TaurusEmerald / Wikimedia Commons, licensed CC BY-SA 4.0. The photograph shows a Formula Drift car; it is not evidence of the car's hydraulic-brake configuration.

Formula DRIFT explicitly allows both architectures

The current Formula DRIFT rulebook page lists the 2026 PRO Technical Regulations as version 1.1. In the brake-system section, the rules require the primary hydraulic brake system to operate all four wheels. They separately allow a secondary hydraulic e-brake as either a fully separate system or a pass-through system, and the secondary system may operate only the rear wheels.

That wording matters because a hydraulic handbrake is not a substitute for the four-wheel primary brake system. It is a secondary control built around the rear brakes. A car intended for PROSPEC, PROAM or another sanctioning body still needs the controlling rulebook for that class; do not assume the PRO wording automatically governs another program.

A separate circuit isolates the handbrake function

In a separate system, the handbrake has its own master cylinder and typically acts on dedicated rear calipers or another independently plumbed rear-brake arrangement. The attraction is isolation: the handbrake circuit can be serviced or diagnosed without placing its master cylinder inline with the primary rear circuit.

The tradeoff is more hardware. Additional calipers, brackets, lines and fittings add packaging, unsprung or corner mass depending on the design, and more components to inspect. The rear upright or knuckle also has to accommodate the second caliper correctly. Fabrication quality matters because a bracket that flexes, interferes with the wheel or places a caliper incorrectly is not solved by the fact that the hydraulic circuit itself is separate.

A pass-through system shares the rear calipers

Wilwood describes its hydraulic handbrake assemblies as capable of a pass-through arrangement where the foot-brake master cylinder feeds through the handbrake master and on to the rear calipers. With the lever at rest, pressure from the primary system passes through; when the lever is applied, the hand control pressurizes the rear circuit.

That can reduce the number of rear calipers and brackets, but it makes the hydraulic relationship between the foot brake and handbrake more important. Component compatibility, master-cylinder selection and plumbing need to follow the brake manufacturers' instructions. This is not an area to choose bore size, line routing or fittings from a generic internet diagram.

Lever position is a driver-interface decision

The handbrake needs to be reachable without forcing the driver out of the seating position or interfering with the steering wheel, shifter, belts or emergency exit. Vertical and horizontal lever orientations exist because cockpit layouts differ.

Mock the driver into the finished seat with helmet, restraint and steering wheel in place before finalizing the lever mount. The best-looking center-console position is irrelevant if the driver has to lean forward or release the steering wheel at the wrong time to reach it.

Bleeding and inspection need to include both controls

Whether the system is separate or pass-through, treat it like race-brake hardware. Inspect for leaks, damaged hoses, loose fittings, mounting movement and changes in lever feel. After opening the hydraulic system, bleed it using the procedures required by the installed components and confirm both the primary brake pedal and handbrake operate consistently before the car goes on track.

A handbrake that gradually needs more stroke or feels different after several runs is giving the crew information. Stop and diagnose the hydraulic and mechanical system rather than simply moving the lever or changing driver technique around it.

Choose the architecture before fabricating the car around it

The clean build process is rulebook first, hydraulic layout second, bracket and line fabrication third. Decide whether the class and car call for a separate or pass-through system. Identify the actual calipers, master cylinders and manufacturer requirements. Then package the lever and lines so they can be inspected and serviced.

The goal is not the biggest lever or the hardest rear-wheel lock. It is a secondary brake system that does the same thing every time without compromising the primary brakes.

For drift-brake fabrication, line routing, caliper mounting and race prep, send Race Club your chassis, rear brake package and intended class. More technical coverage is in the Drifting journal.

Primary references

2026 Formula DRIFT PRO Technical Regulations v1.1
Wilwood: Hydraulic Hand Brakes and Cutting Brakes

Sources checked September 23, 2026. Verify the controlling class rulebook and the exact brake-component manufacturer instructions before fabrication. This article explains system architecture and does not provide universal safety-critical plumbing dimensions.
