Drift Car Wheel Clearance: Check Lock, Barrel and Tie-Rod Sweep
Wheel fitment on a drift car is not solved when the car sits correctly in the pits. The front wheels have to clear the brake package, suspension, tie rods, tension rods, chassis and bodywork while steering from lock to lock and moving through suspension travel. The only reliable answer comes from checking the entire motion envelope.
Offset is only one part of the package
Two wheels with the same width and offset can have very different inner-barrel and spoke clearance. Caliper shape, barrel step, spoke profile and lip construction all affect usable space. A wheel that clears the caliper may still contact the tie-rod end or control arm near full lock.
Start with the actual hub, rotor, caliper and spacer stack that will run on the car. Confirm thread engagement and use hardware designed for the application. Do not use a spacer to solve one interference problem without checking what it creates at the fender and tire.
Check both steering directions through travel

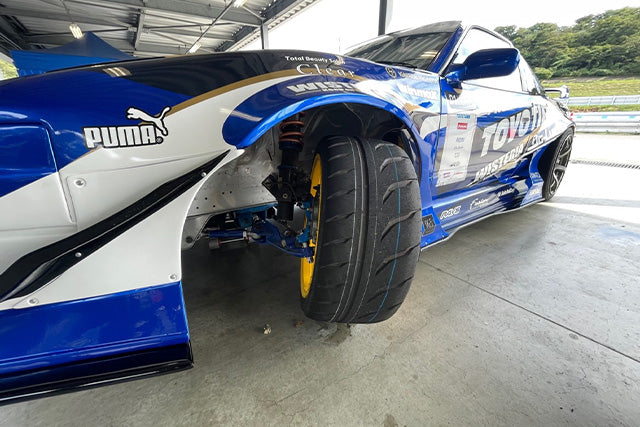

Raise the front suspension through its working range with the spring removed or the coilover disconnected as appropriate. Turn from center to both steering stops at several ride-height positions. Watch the tire's inner and outer shoulders, the wheel barrel, brake hose, ABS wiring and tie-rod hardware.
Repeat the check with the wheel loaded in the direction it will see on track. Bushings, bearings and steering components can deflect. A few millimeters of static clearance can disappear under braking, a transition or a curb strike.
Tire shape changes the result
Nominal tire size is not a universal dimension. Section width and shoulder profile vary by model and approved rim width. A square-shouldered 235 can occupy more space than another tire carrying the same numbers. Measure the intended tire, then leave room for growth, deflection and debris.
Protect the steering system
If contact occurs near lock, identify the exact point before grinding, spacing or limiting travel. Steering-stop changes affect available angle and can shift loads into components that were not intended to become the stop. Brake hoses and sensor wires need slack at every position without being able to touch the tire.
The final verification happens with the car at operating ride height, aligned, and carrying the wheels and tires it will actually use. Mark interference points, correct them, and repeat the full sweep. Drift fitment should be treated as suspension packaging, because on track that is exactly what it is.
Race Club supports drift builds with wheels, steering, suspension and fabrication hardware, but measurements come first. Build from the motion envelope outward and the car will be easier to drive, service and trust at full lock.
